Special Structure Sealing Products
Drysuit Envelope Zipper
Silicone rubber drysuit envelope rated IPX8, built for deep-sea pressure and salt water.
Product overview
Professional drysuit envelope zipper made of silicone rubber for reliable sealing under extreme water pressure. For drysuits, deep-sea suits, and rescue gear.
- Material
- Silicone Rubber
- Waterproof rating
- IPX8
- Size
- #5 / #8
Send your opening length, tape width and host material — we quote against the assembly, not a catalogue number.
Published data
Full specifications
Reproduced verbatim from the manufacturer's product data. No value is rounded, converted or inferred.
| Parameter | Published value |
|---|---|
| Size | #5 / #8 |
| Material | Silicone Rubber |
| Waterproof Rating | IPX8 |
| Color | Black |
| Length | Customizable |
| Saltwater Resistance | Excellent |
| Process | HF welding, bonding |
| Environment | Deep-sea high pressure |
| Application | Drysuits, deep-sea suits, underwater rescue gear |
Good to know

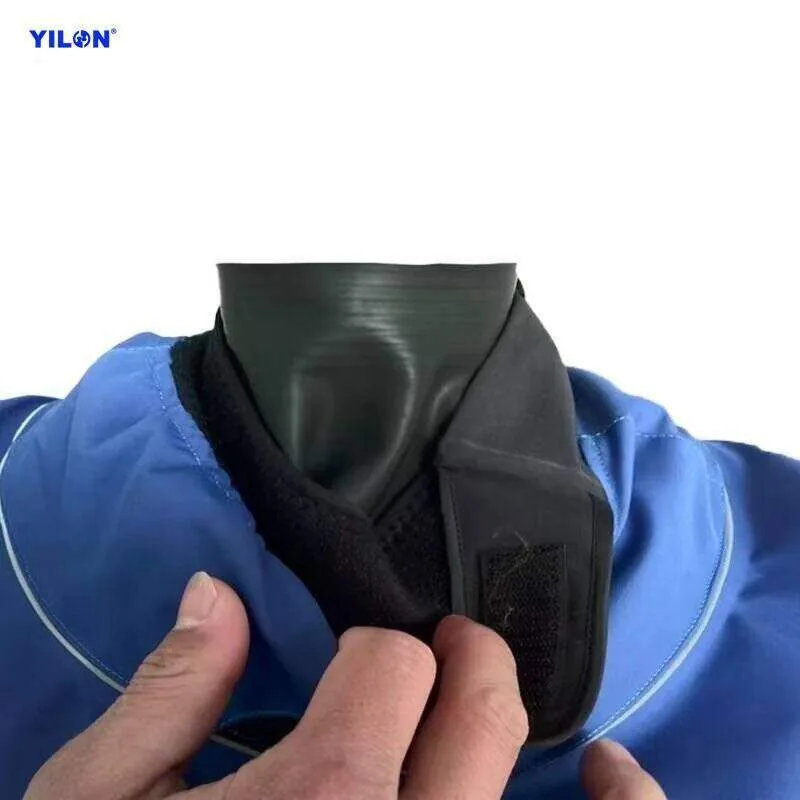

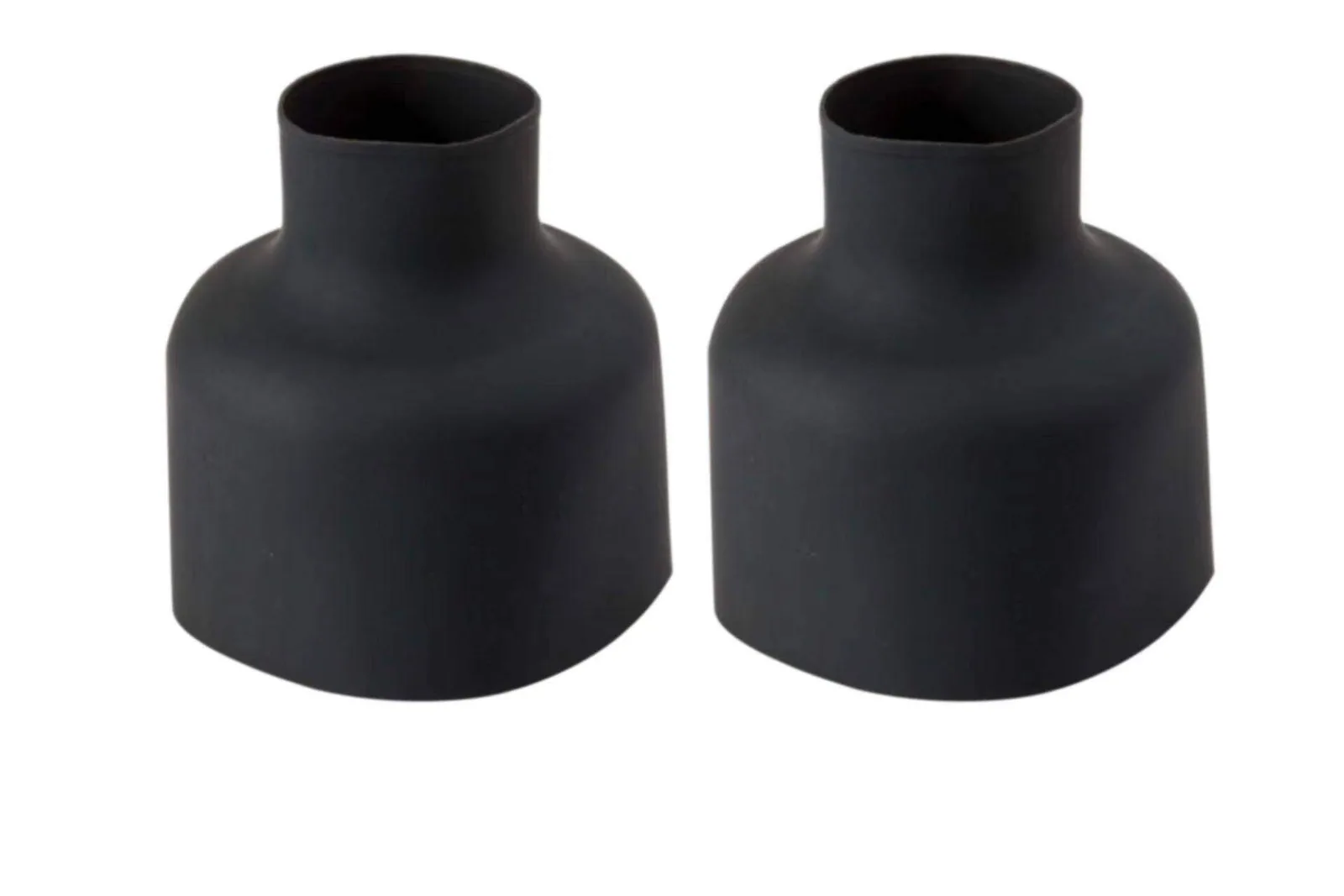

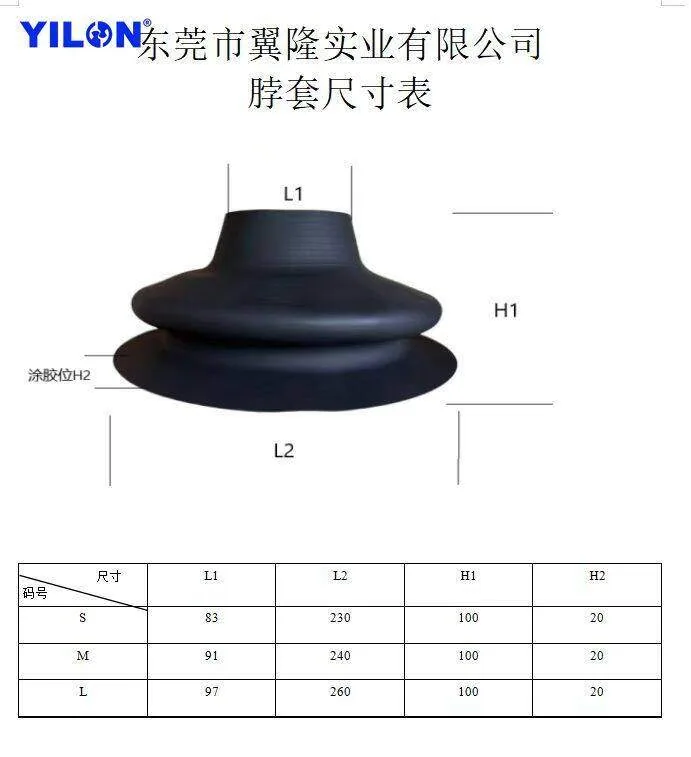

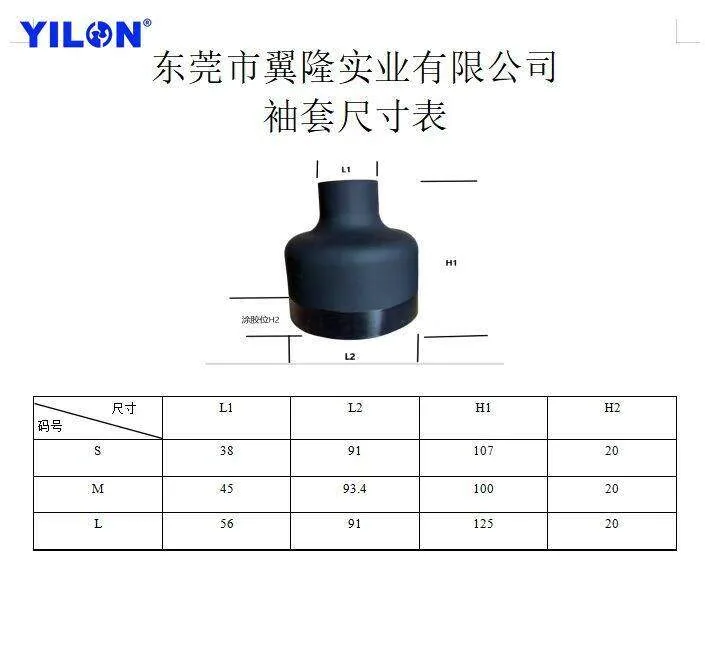

The manufacturer publishes neck seal and sleeve seal accessories for this product.
Applications
Where this series is used
The manufacturer's published applications for this product. Each links to the sealing requirements that apply to that use.
Also consider
Related series
IPX8Circular Airtight Zipper
Closed-loop zipper delivering 360° sealing around an opening, IPX8 rated and 60 kPa tested.
- Material
- TPU
- Seal strength
- 60 kPa
IPX8#10 Resin Airtight Zipper
Heavy-duty #10 resin airtight zipper with a TPU sealing layer, rated IPX8 and tested to 60 kPa sealing pressure.
- Material
- TPU
- Seal strength
- 60 kPa
IPX8#5 Resin Airtight Zipper
Compact #5 resin airtight zipper — IPX8 sealed, 30 kPa tested, for lighter waterproof and airtight assemblies.
- Material
- TPU
- Seal strength
- 30 kPa
Common questions
Questions buyers ask about this product
How do I choose between TPU, PEVA, silicone rubber and nylon woven materials?
TPU suits most airtight waterproof projects. PEVA suits lightweight and economy waterproof products. Silicone rubber suits wide temperature ranges and high-end sealing. Nylon woven with TPU suits garments and flexible fabrics. Resin teeth with a sealing layer suit openings that need higher strength.
What product ranges and sub-models does YILON currently offer?
YILON currently covers 9 main product ranges: #10 resin airtight zipper, #5 resin airtight zipper, self-healing airtight zipper, PEVA airtight zipper, #5 nylon woven waterproof zipper, #8 nylon woven waterproof zipper, high-speed roller door zipper, circular airtight zipper and drysuit envelope. The #10 resin, #5 resin, self-healing, high-speed roller door and circular ranges are published with 3,000+ cycle durability.
What is an airtight waterproof zipper, and what sealing problems does YILON solve?
An airtight waterproof zipper stops water, air and moisture entering or escaping through an opening. It suits products that need an openable sealed port: military equipment, waterproof equipment, sealed bags and luggage, protective suits, diving gear, inflatable products and industrial high-speed doors. YILON can customise length from 5 cm to 100 m, plus size, tape width, colour, slider, opening style, material and testing requirements.
What do the IPX6, IPX7 and IPX8 waterproof ratings mean?
IPX6 means protection against powerful water jets, IPX7 means protection against temporary immersion, and IPX8 means continuous immersion under agreed conditions. When selecting, define the test depth, pressure, duration, mounting method, end structure and whether the zipper must be opened and closed repeatedly.
Quote the Drysuit Envelope to your specification
Length, tape width, colour, slider and opening style are all produced to order. Send the drawing or the host material and we will confirm the build and the lead time.
