Nylon Woven Waterproof Zippers

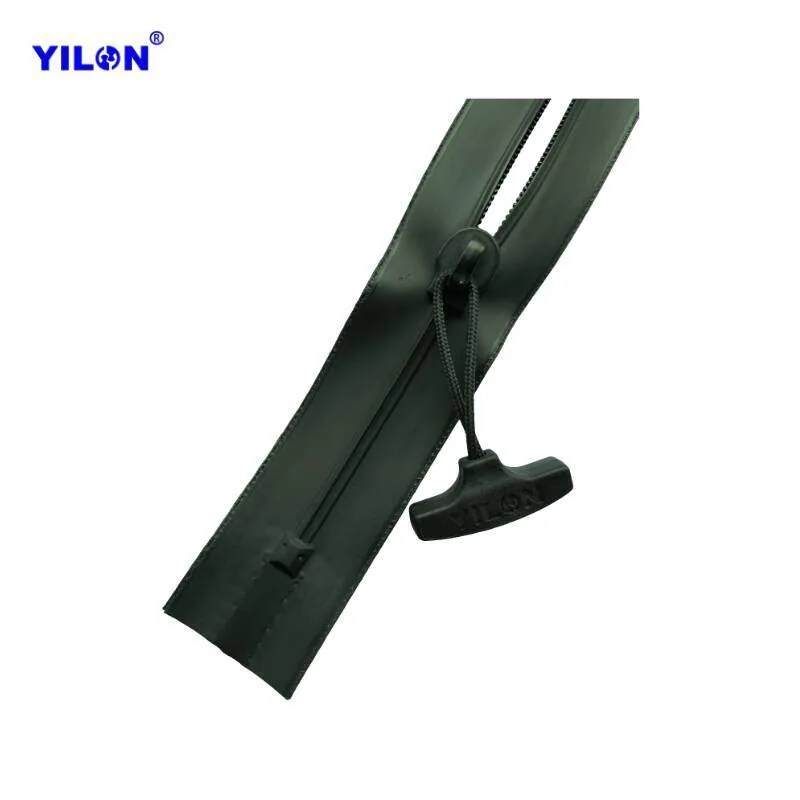

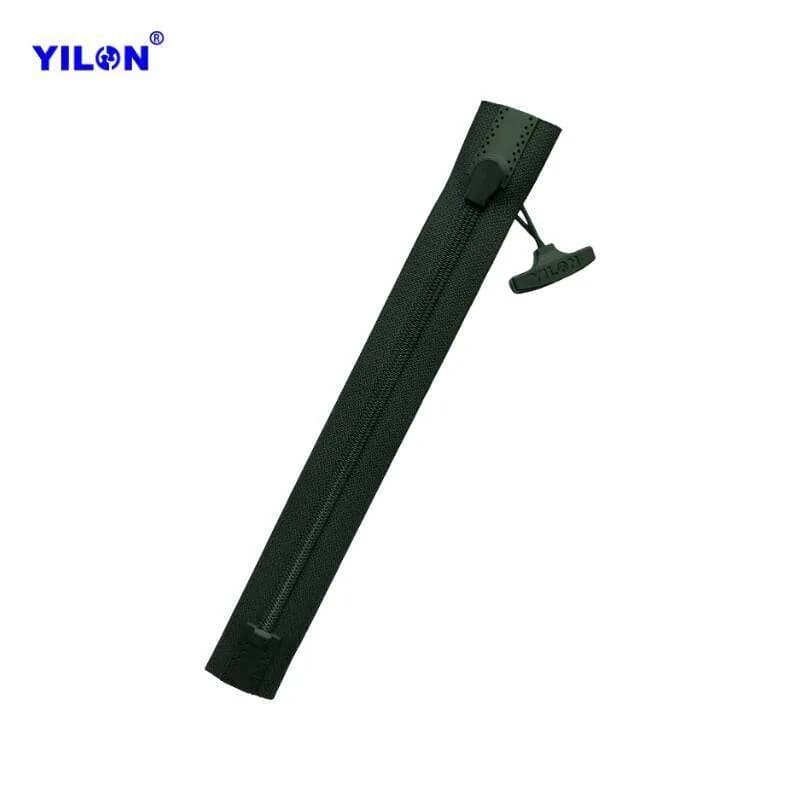

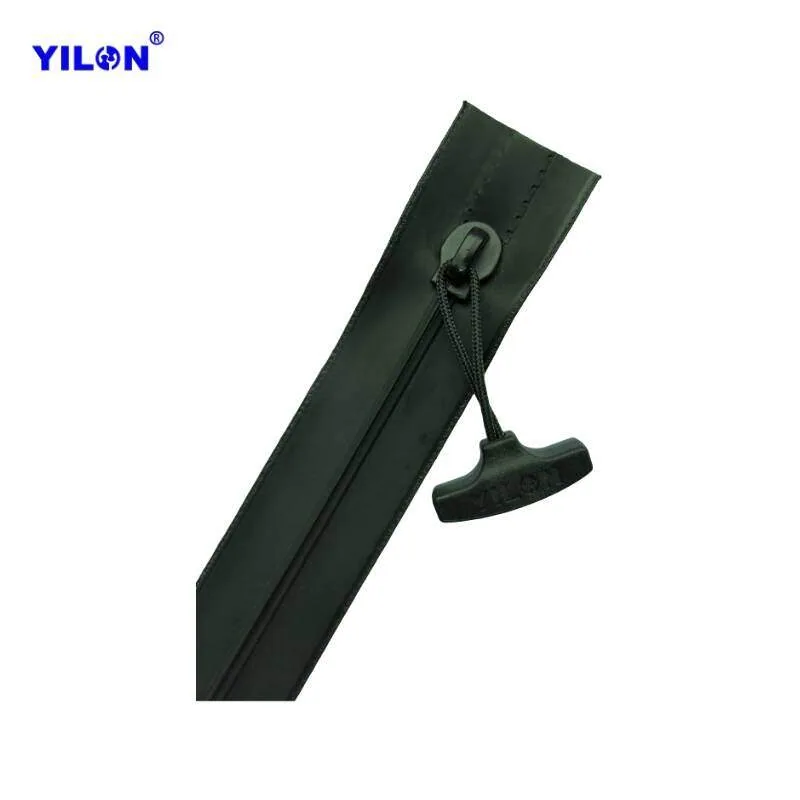

#8 Nylon Woven Waterproof Zipper
The heavier #8 nylon woven build — same IPX6 TPU coating, stronger structure for higher-durability seals.
Product overview
#8 nylon woven watertight zipper with a stronger structure and TPU coating for IPX6 protection, suitable for military equipment, waterproof equipment, sealed bags and luggage, and protective suits.
- Material
- Coating: TPU; Tape: Polyester; Teeth: Nylon
- Waterproof rating
- IPX6
- Size
- #8
Send your opening length, tape width and host material — we quote against the assembly, not a catalogue number.
Published data
Full specifications
Reproduced verbatim from the manufacturer's product data. No value is rounded, converted or inferred.
| Parameter | Published value |
|---|---|
| Size | #8 |
| Material | Coating: TPU; Tape: Polyester; Teeth: Nylon |
| Waterproof Rating | IPX6 |
| Total Length | Fully customizable |
| Effective Length | Fully customizable |
| Weight (per meter) | ~35 g/m |
| Tape Width | 32±1 mm |
| Tooth Width | 6.2±1 mm |
| Tooth Height | 3.0±0.05 mm |
| Color | Black (custom) |
| Flat Pull Strength | ≥700 N |
| Top Stop Strength | ≥250 N |
| Sliding Smoothness | ≤20 N |
| Slider Pull Force | ≤55 N |
| Cycle Test | ≥3000 cycles |
| Application | Military equipment, waterproof equipment, sealed bags and luggage, protective suits |
Features
Product features
- Airtight and waterproof sealing performance
- Multiple sizes available
- Custom colours available
- Eco-friendly materials
- IPX6 / IPX7 / IPX8 ratings available
Applications
Where this series is used
The manufacturer's published applications for this product. Each links to the sealing requirements that apply to that use.
Technical guides
How this series is specified
The engineering references buyers use to pin down a specification — ratings, materials and the data a quotation needs to be accurate.
- Airtight Waterproof Zipper Selection GuideChoose an airtight waterproof zipper in four steps: waterproof rating, size, material and custom specification. Includes the published IPX6–IPX8, #5/#8/#10 and material comparisons.
- Airtight vs Watertight vs Waterproof ZippersAirtight, watertight and waterproof are three different sealing levels. This guide compares their definitions, ratings, structure and typical uses — and the one question that tells you which you need.
- IPX Waterproof Rating Guide: IPX6, IPX7, IPX8What IPX6, IPX7 and IPX8 actually mean, with the IEC 60529 test conditions behind each rating and the limitations of using IPX alone to specify a sealed zipper.
Also consider
Related series
IPX6#5 Nylon Woven Waterproof Zipper
Flexible TPU-coated nylon woven zipper rated IPX6, with full published pull-strength and dimensional tolerances.
- Material
- Coating: TPU; Tape: Polyester; Teeth: Nylon
- Seal strength
- —
IPX8#10 Plastic Airtight Zipper
Heavy-duty #10 plastic airtight zipper with a TPU sealing layer, rated IPX8 and tested to 60 kPa sealing pressure.
- Material
- TPU
- Seal strength
- 60 kPa
IPX8#5 Plastic Airtight Zipper
Compact #5 plastic airtight zipper — IPX8 sealed, 30 kPa tested, for lighter waterproof and airtight assemblies.
- Material
- TPU
- Seal strength
- 30 kPa
Common questions
Questions buyers ask about this product
How do I choose between #5, #8 and #10 airtight waterproof zippers?
#5 suits lightweight and flexible products, #8 suits medium-to-high strength waterproof equipment, and #10 suits heavy-duty, pressure-resistant and industrial sealing projects. The plastic, nylon woven, self-healing and circular ranges address military equipment, waterproof equipment, sealed bags and luggage, and protective suits. When selecting, supply the use case, opening length, tape width, host material, water or air pressure, opening frequency and target waterproof rating.
What product ranges and sub-models does YILON currently offer?
YILON currently covers 9 main product ranges: #10 plastic airtight zipper, #5 plastic airtight zipper, self-healing airtight zipper, PEVA airtight zipper, #5 nylon woven waterproof zipper, #8 nylon woven waterproof zipper, high-speed roller door zipper, circular airtight zipper and drysuit envelope. The #10 plastic, #5 plastic, self-healing, high-speed roller door and circular ranges are published with 3,000+ cycle durability.
What is an airtight waterproof zipper, and what sealing problems does YILON solve?
An airtight waterproof zipper stops water, air and moisture entering or escaping through an opening. It suits products that need an openable sealed port: military equipment, waterproof equipment, sealed bags and luggage, protective suits, diving gear, inflatable products and industrial high-speed doors. YILON can customise length from 5 cm to 100 m, plus size, tape width, colour, slider, opening style, material and testing requirements.
What do the IPX6, IPX7 and IPX8 waterproof ratings mean?
IPX6 means protection against powerful water jets, IPX7 means protection against temporary immersion, and IPX8 means continuous immersion under agreed conditions. When selecting, define the test depth, pressure, duration, mounting method, end structure and whether the zipper must be opened and closed repeatedly.
Quote the #8 Nylon to your specification
Length, tape width, colour, slider and opening style are all produced to order. Send the drawing or the host material and we will confirm the build and the lead time.
