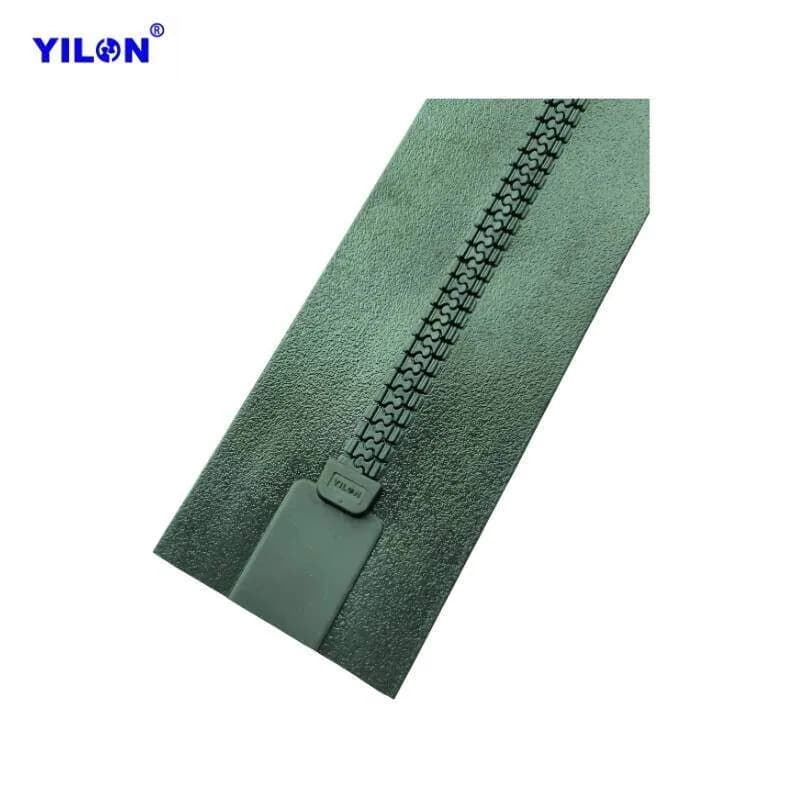

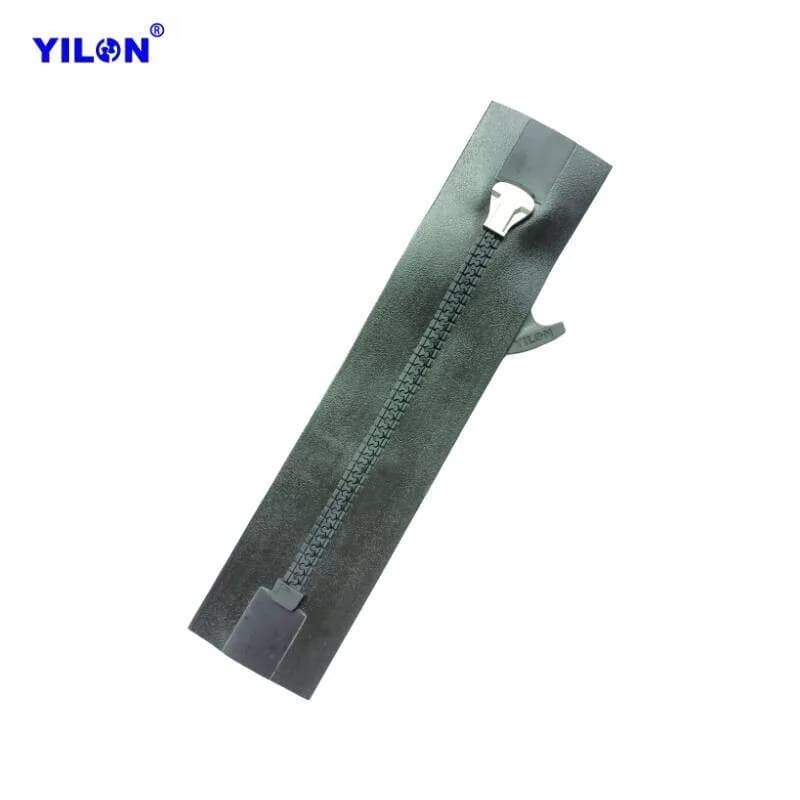

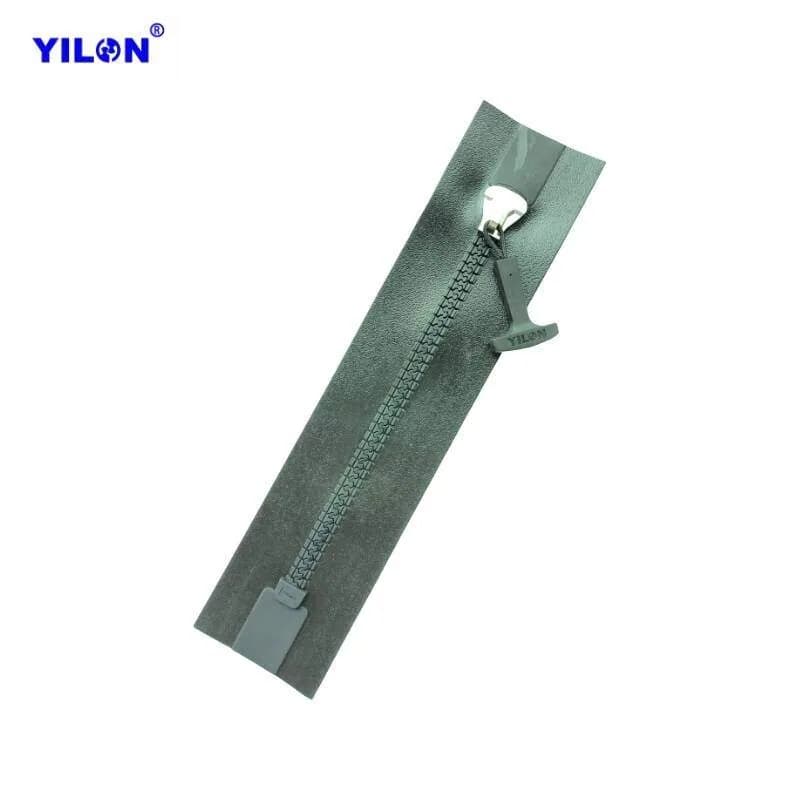

#10 Resin Airtight Zipper
Heavy-duty #10 resin airtight zipper with a TPU sealing layer, rated IPX8 and tested to 60 kPa sealing pressure.
Product overview
High-strength resin structure with a TPU sealing layer for military equipment, waterproof equipment, sealed bags and luggage, and protective suits. Strong teeth, stable sealing, and fully customizable sizing.
- Material
- TPU
- Waterproof rating
- IPX8
- Seal strength
- 60 kPa
- Size
- #10
Send your opening length, tape width and host material — we quote against the assembly, not a catalogue number.
Published data
Full specifications
Reproduced verbatim from the manufacturer's product data. No value is rounded, converted or inferred.
| Parameter | Published value |
|---|---|
| Chain Width | 10 mm |
| Length | Fully customizable |
| Tape Width | 45 mm |
| End Tab | 20 mm |
| Seal Strength | 60 kPa |
| Tensile Strength | 1100 N/5 cm |
| Heat Resistance | -30°C ~ 70°C |
| Material | TPU |
| Slider | Metal/Plastic |
| Process | HF welding, sewing/tape, bonding |
| Weather Resistance | Good |
| Oil Resistance | Good |
| Durability | 3000+ cycles |

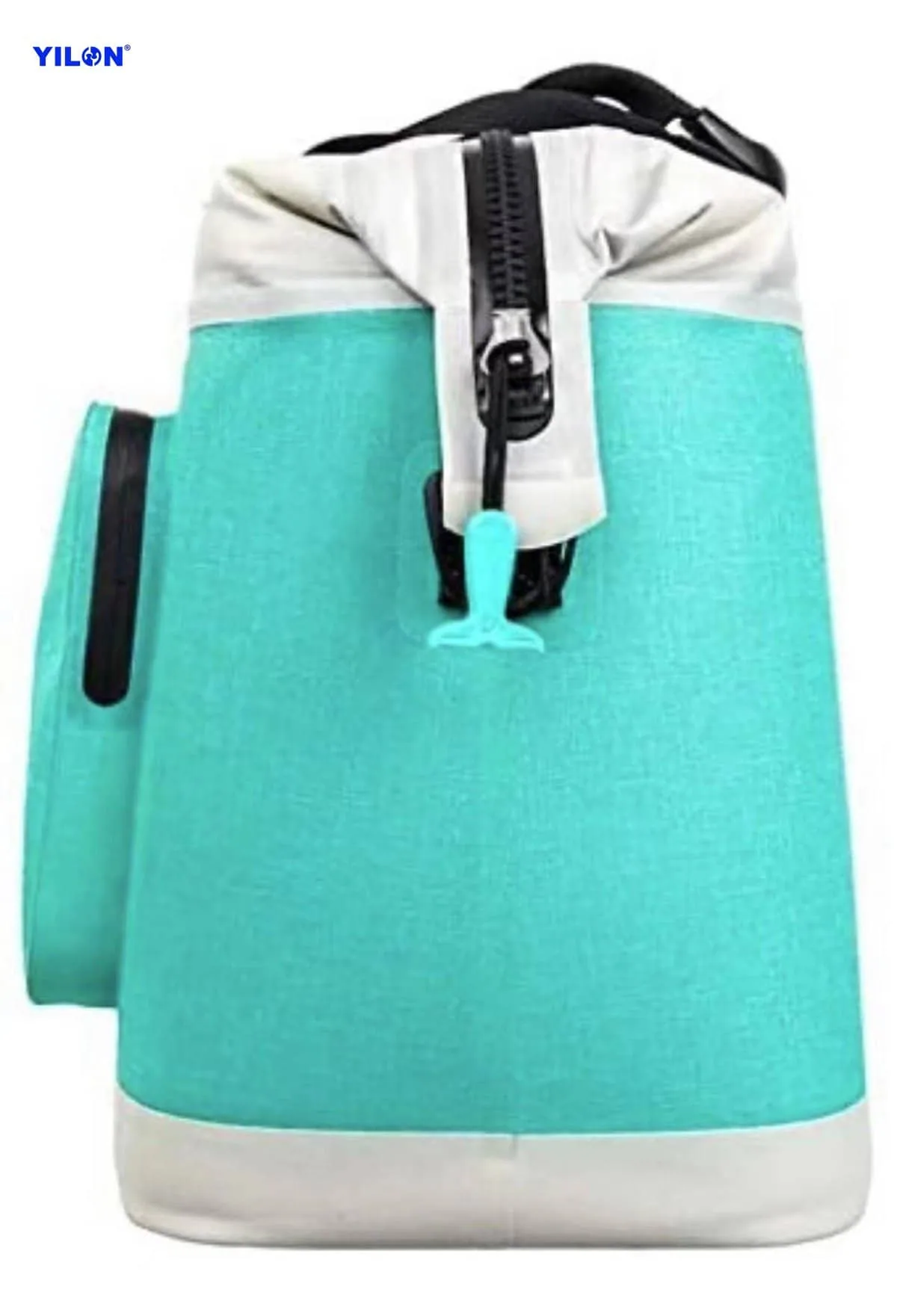

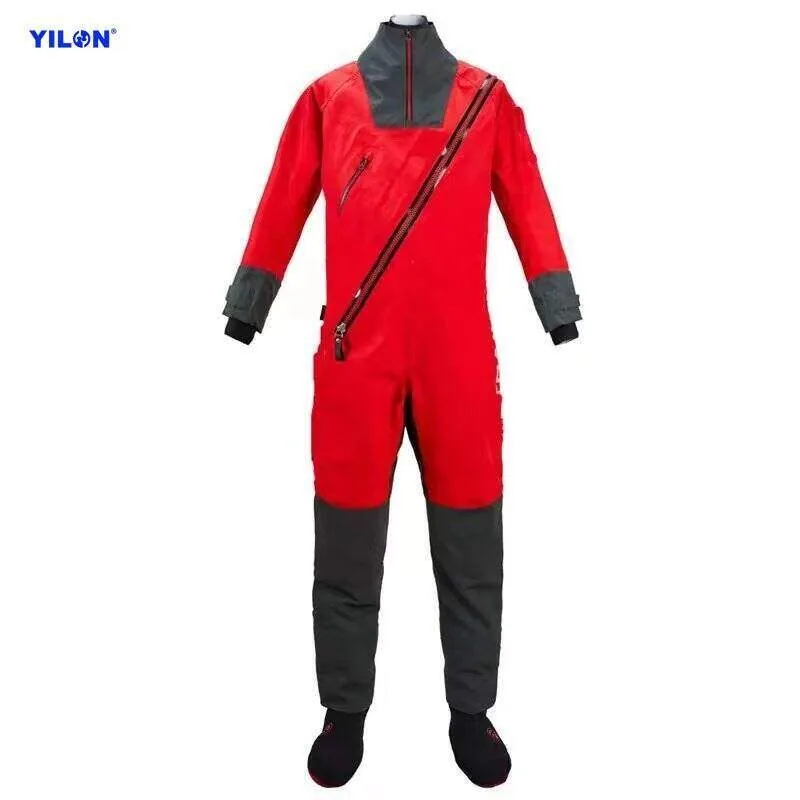

| Application | Military equipment, waterproof equipment, sealed bags and luggage, protective suits |
Features
Product features
- Airtight and waterproof sealing performance
- Multiple sizes available
- Custom colours available
- Eco-friendly materials
- IPX6 / IPX7 / IPX8 ratings available
49 variants
Variants produced for this series
Slider arrangement, puller, colour and length combinations published for this series. Variant naming follows the manufacturer's own list.

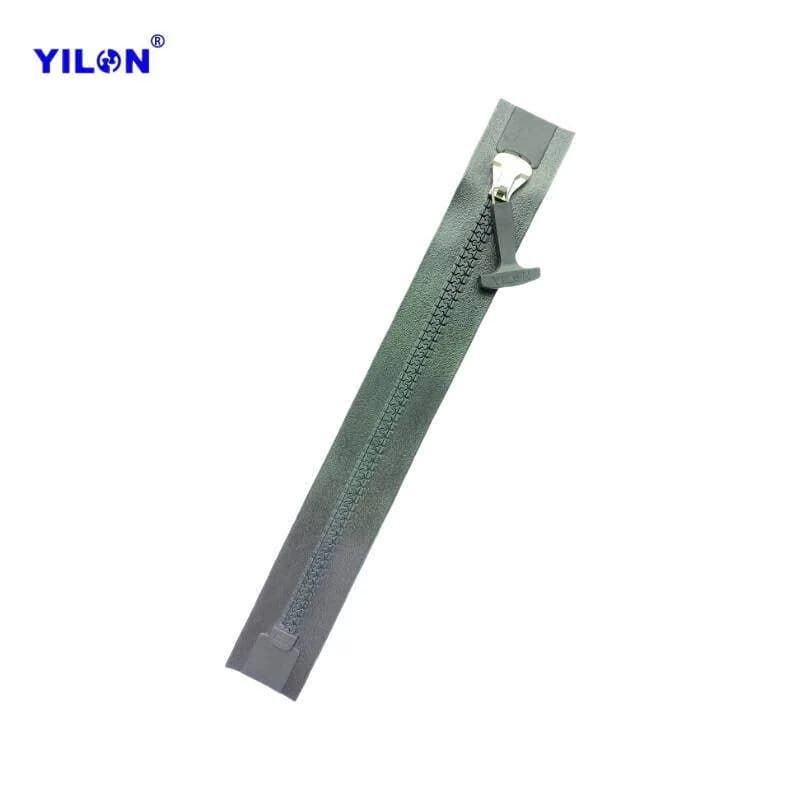

#10 23CM Double Closed
7 images published

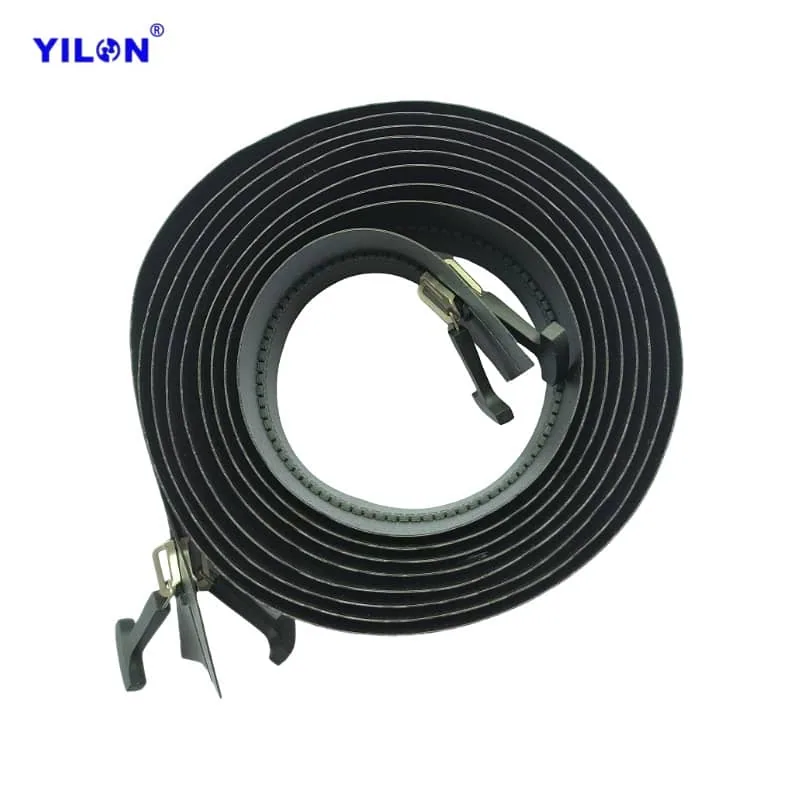

#10 70mm Double Slider Inner/Outer Airtight Zipper
5 images published

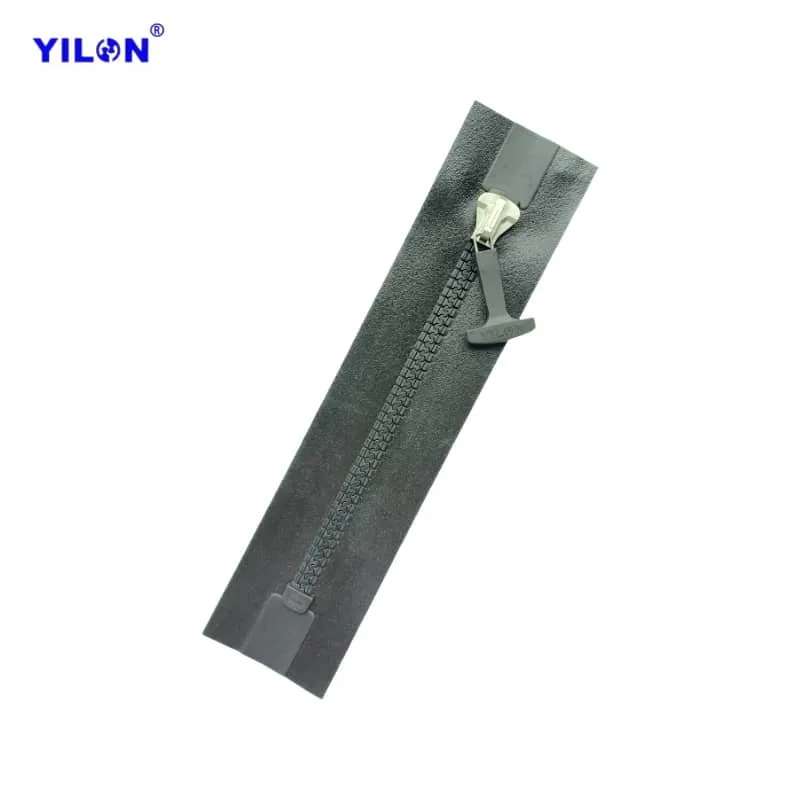

#10 70mm Wide 23CM Airtight Zipper
6 images published

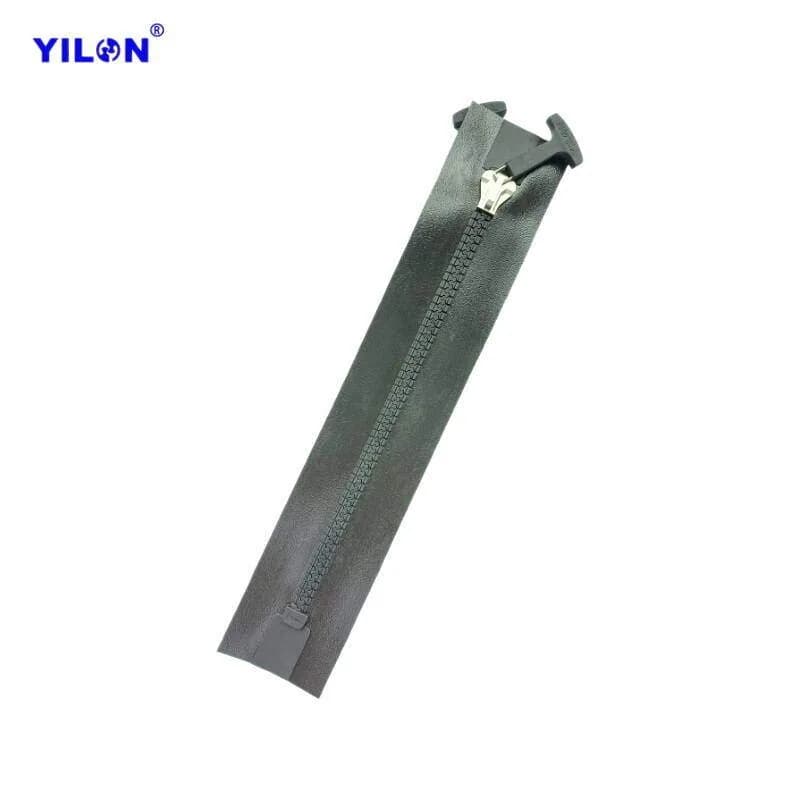

#10 70mm Wide Single Slider Double Puller
6 images published

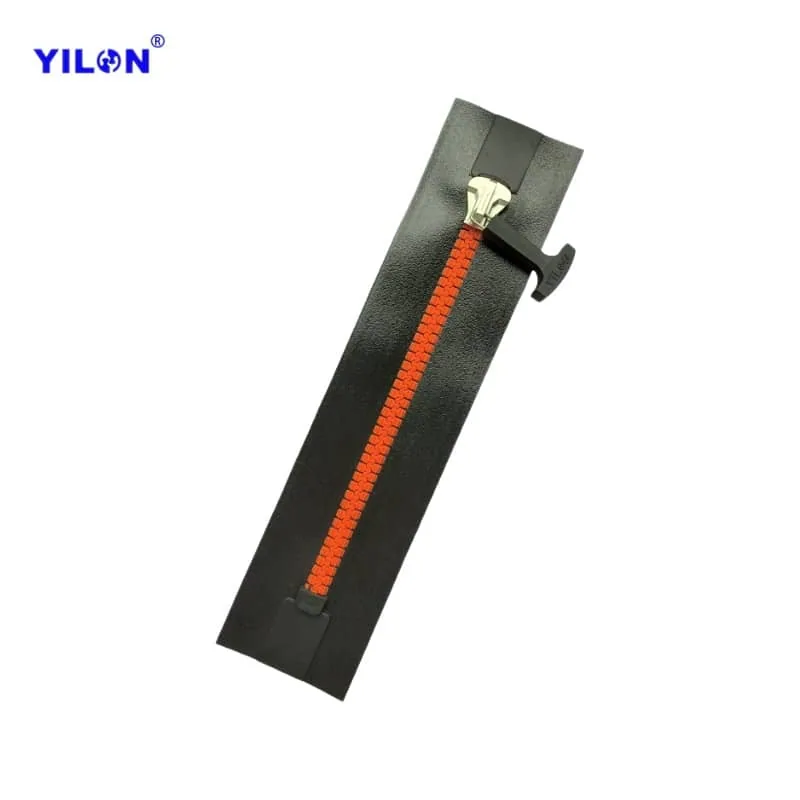

#10 70mm Orange T Pull
6 images published

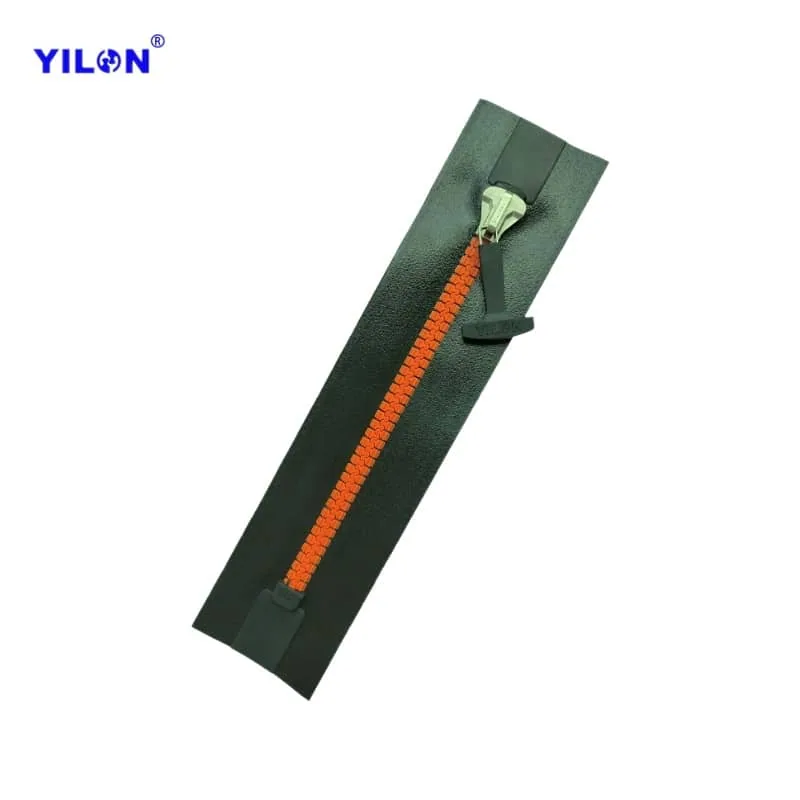

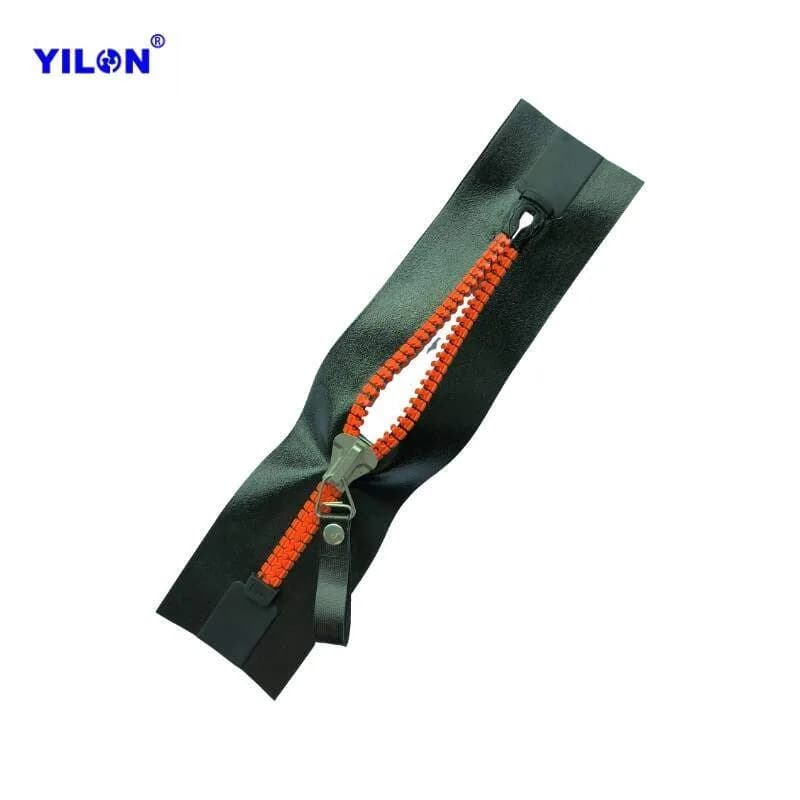

#10 70mm Orange Double Closed
6 images published

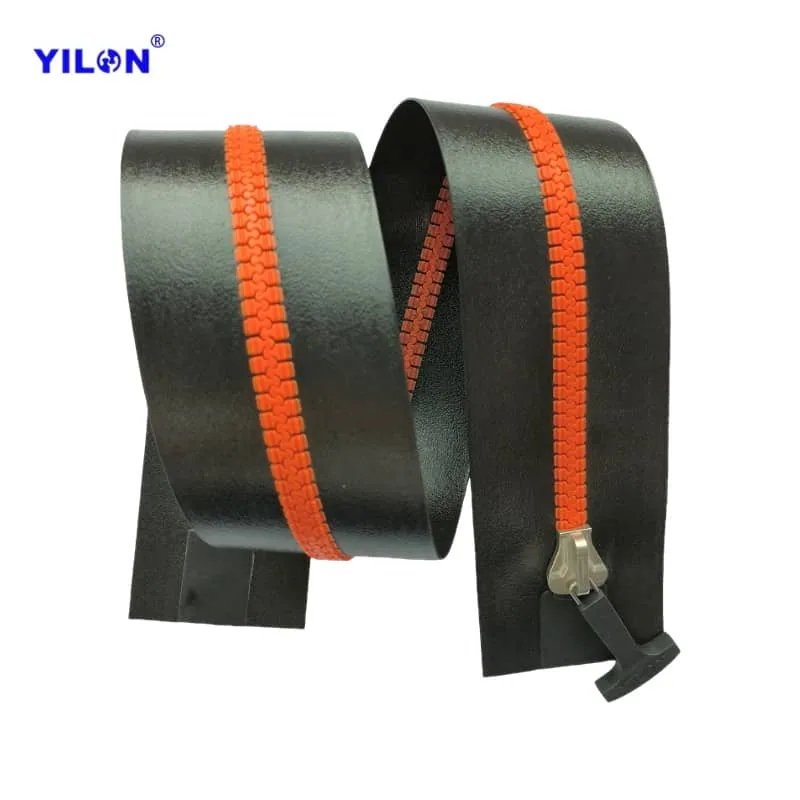

#10 70mm Orange Double Closed 76CM
3 images published

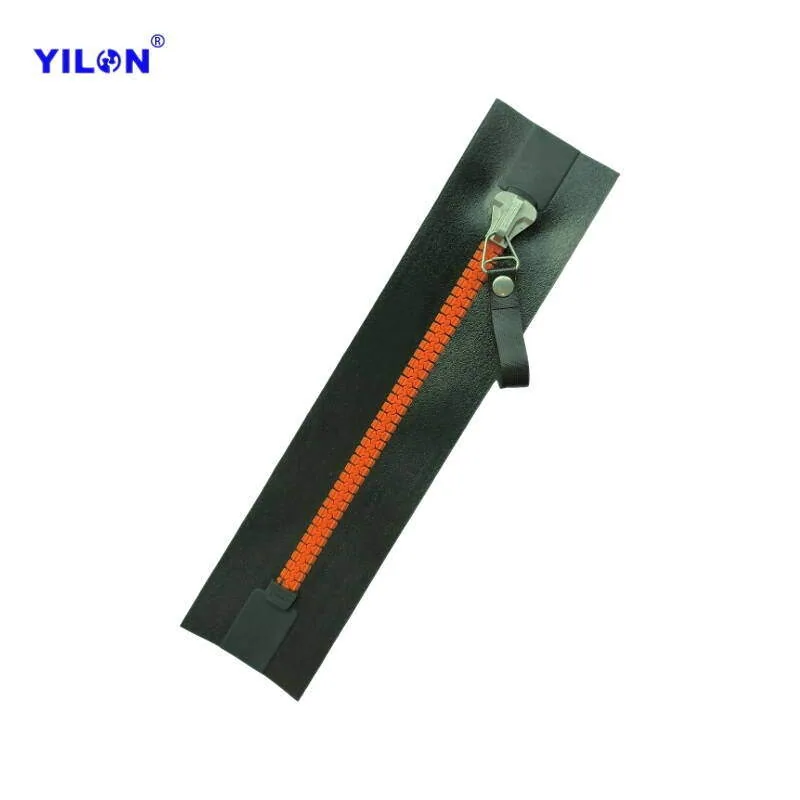

#10 70mm Orange Fabric Pull Tab
6 images published

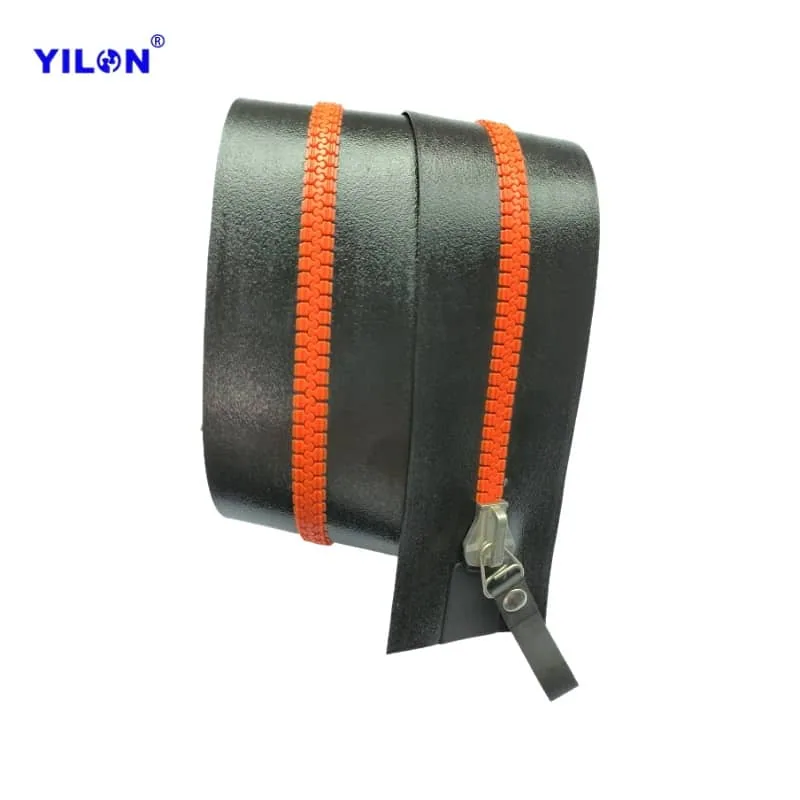

#10 70mm Orange Fabric Pull Tab Long
5 images published

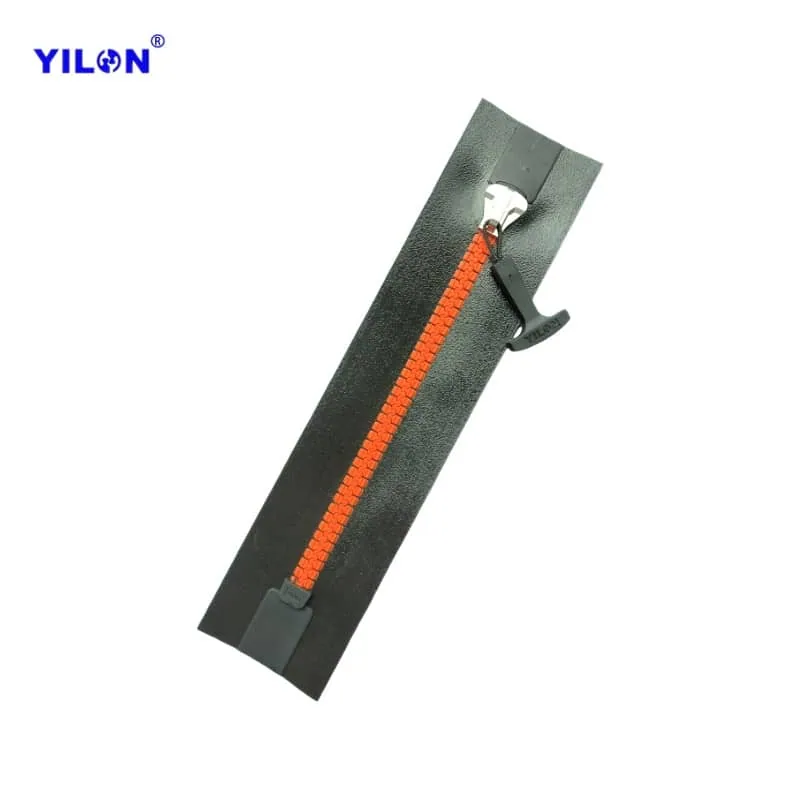

#10 70mm Orange Cord T
6 images published

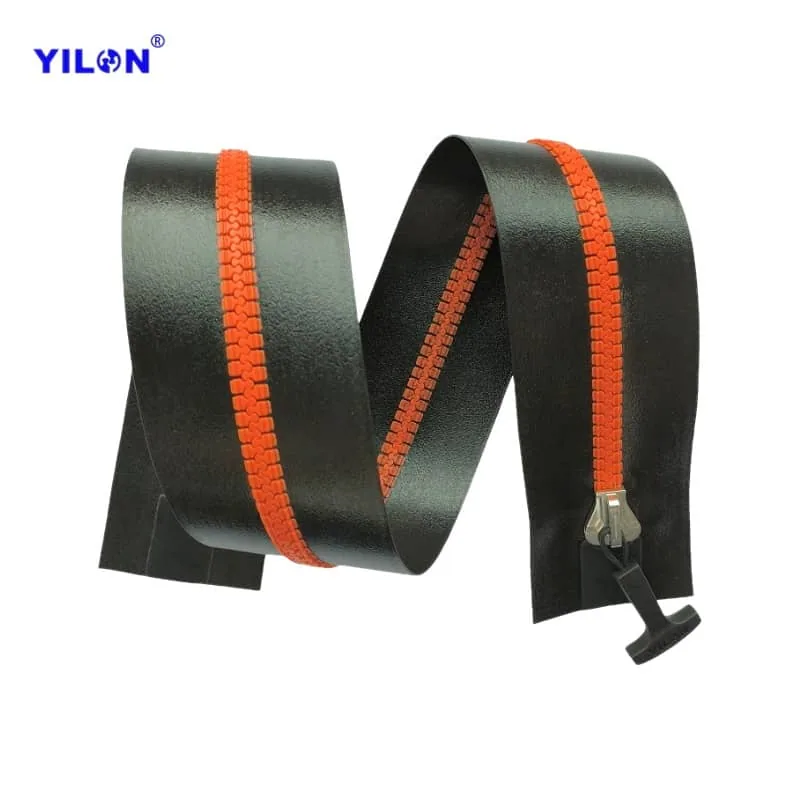

#10 70mm Orange Cord T Long
3 images published

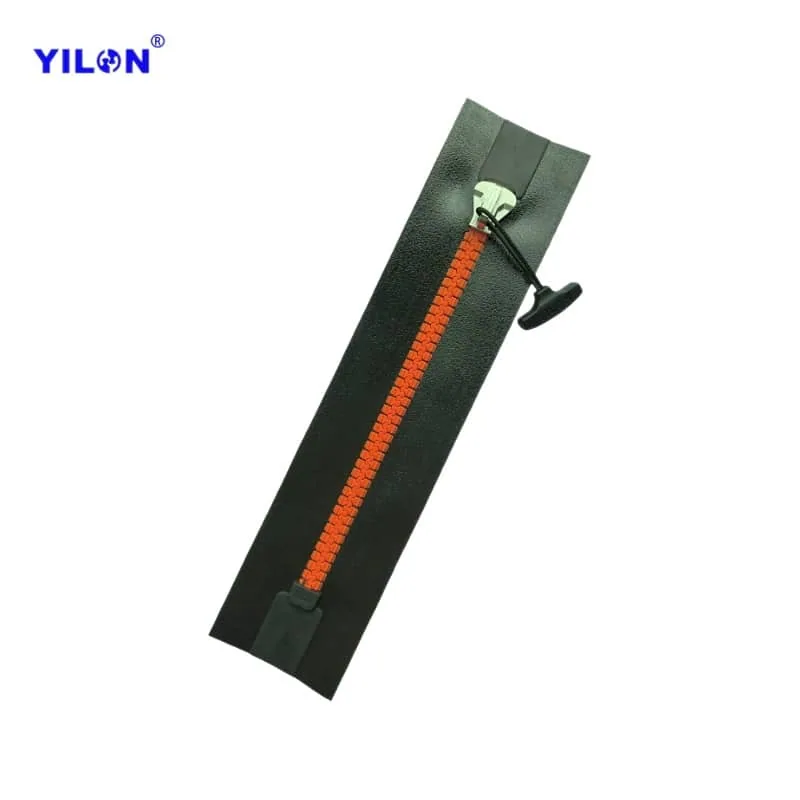

#10 70mm Orange Cord End
6 images published

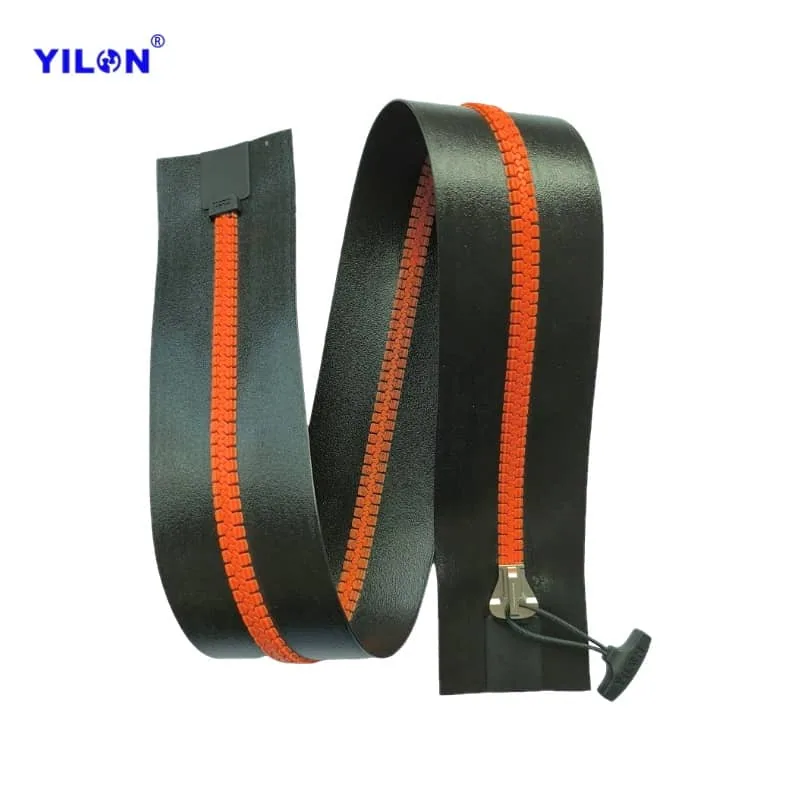

#10 70mm Orange Cord End 76CM
4 images published

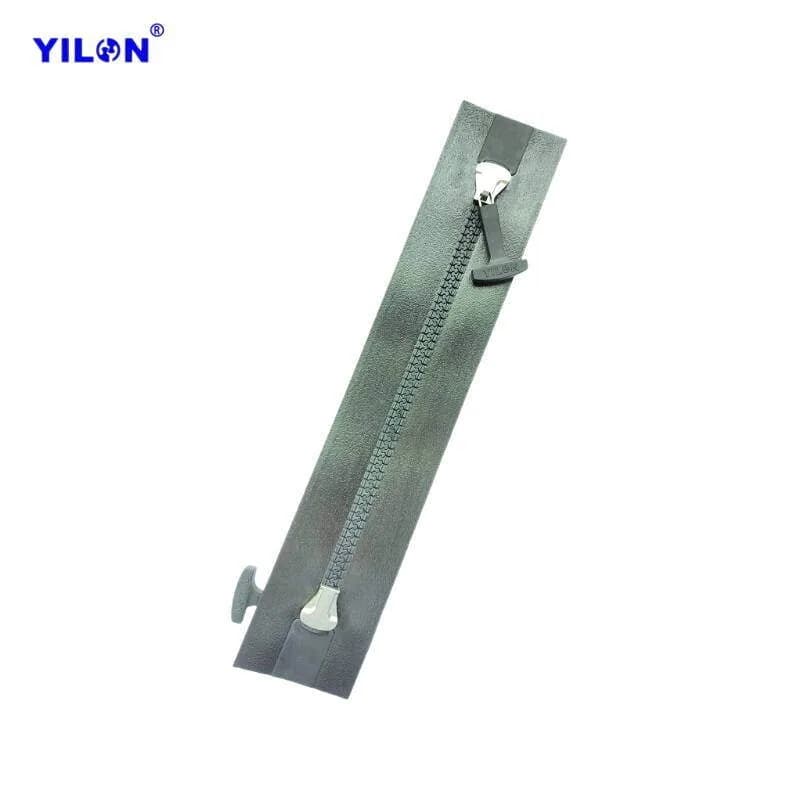

#10 70mm Front/Back Double Slider
6 images published

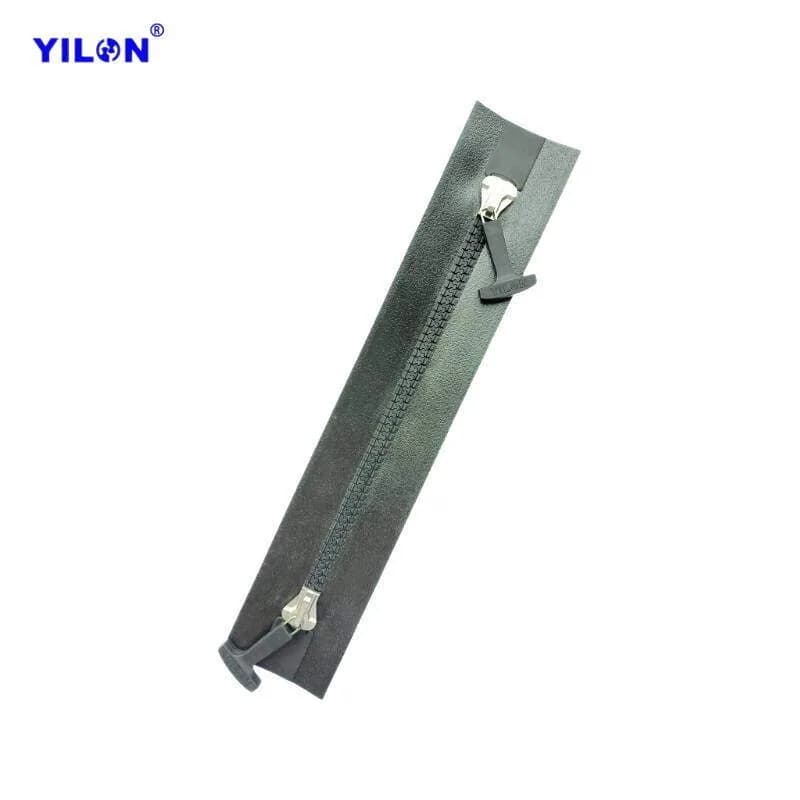

#10 70mm Front Double Slider
6 images published

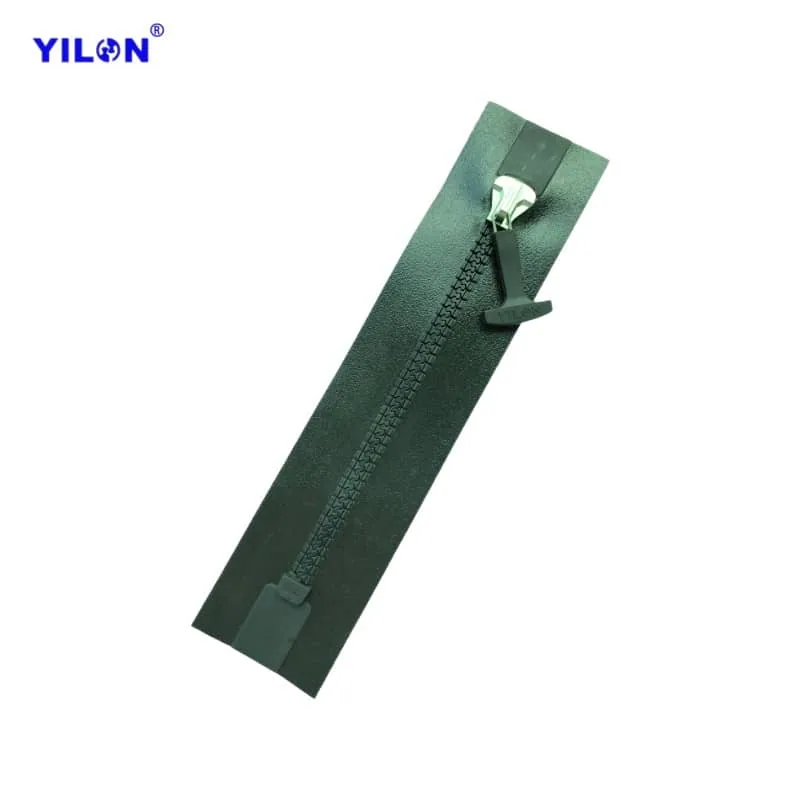

#10 70mm Black T Pull
6 images published

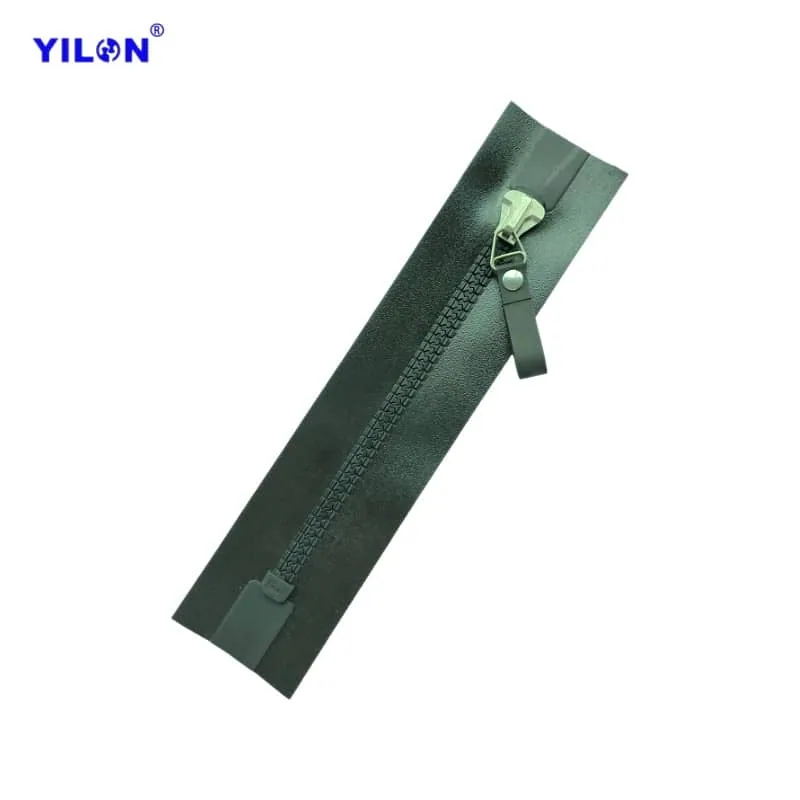

#10 70mm Black Fabric Pull Tab
6 images published

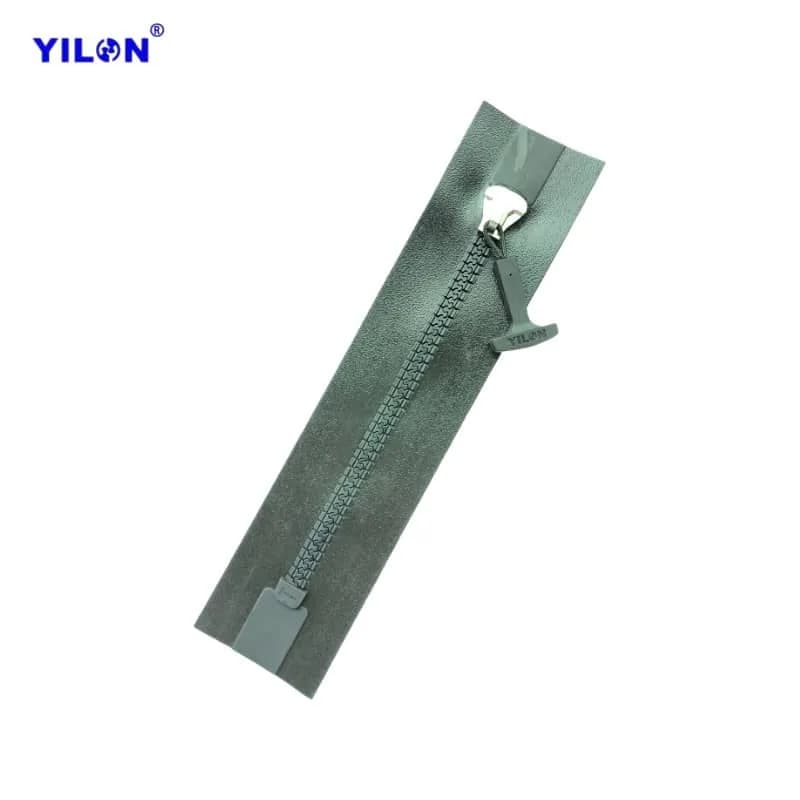

#10 70mm Black Cord T
6 images published

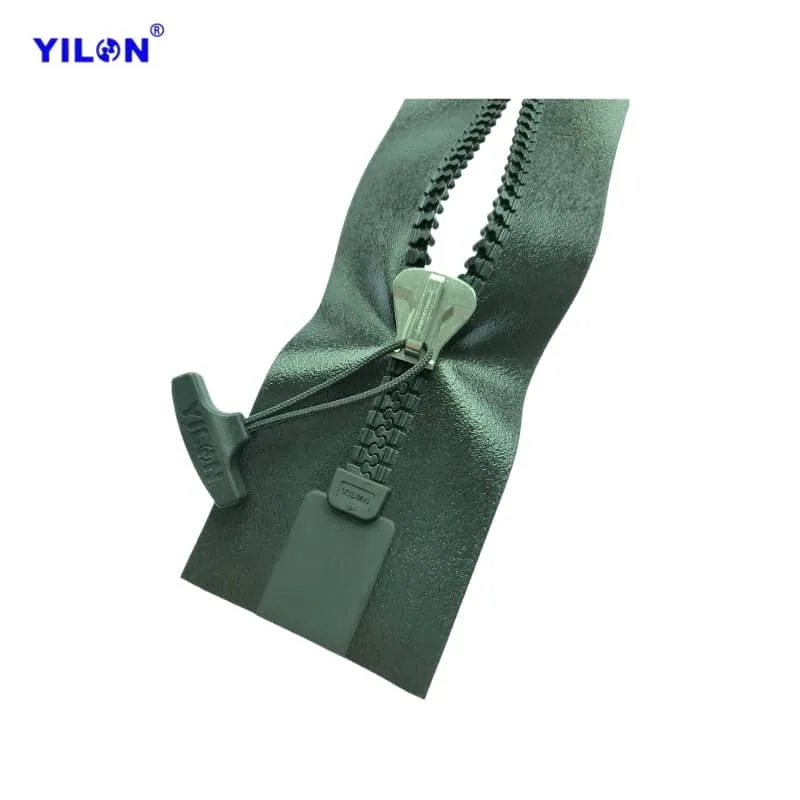

#10 70mm Black Cord End
6 images published

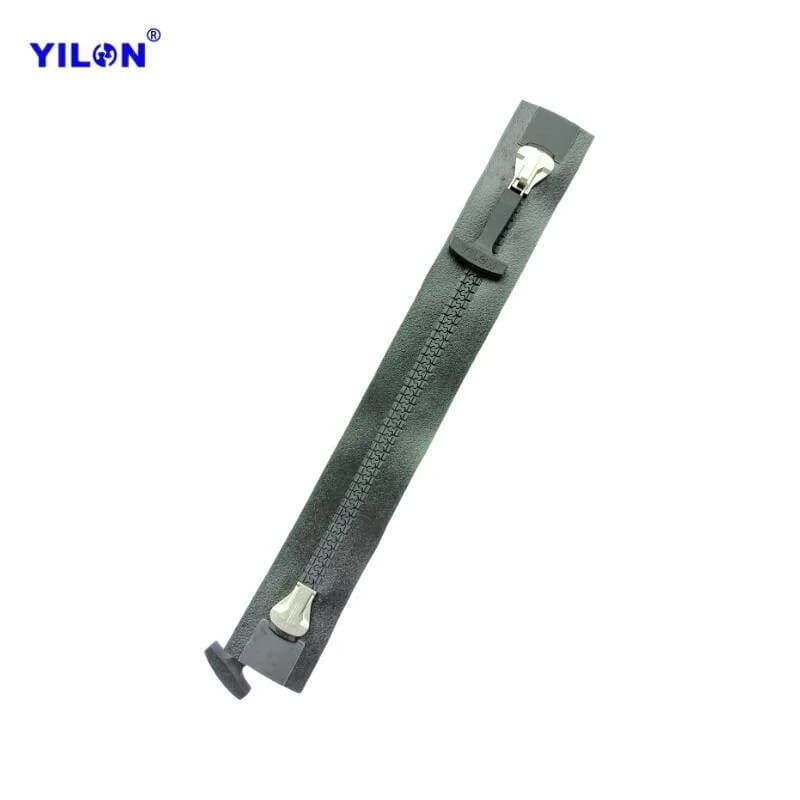

#10 One Front One Back Double Slider
6 images published

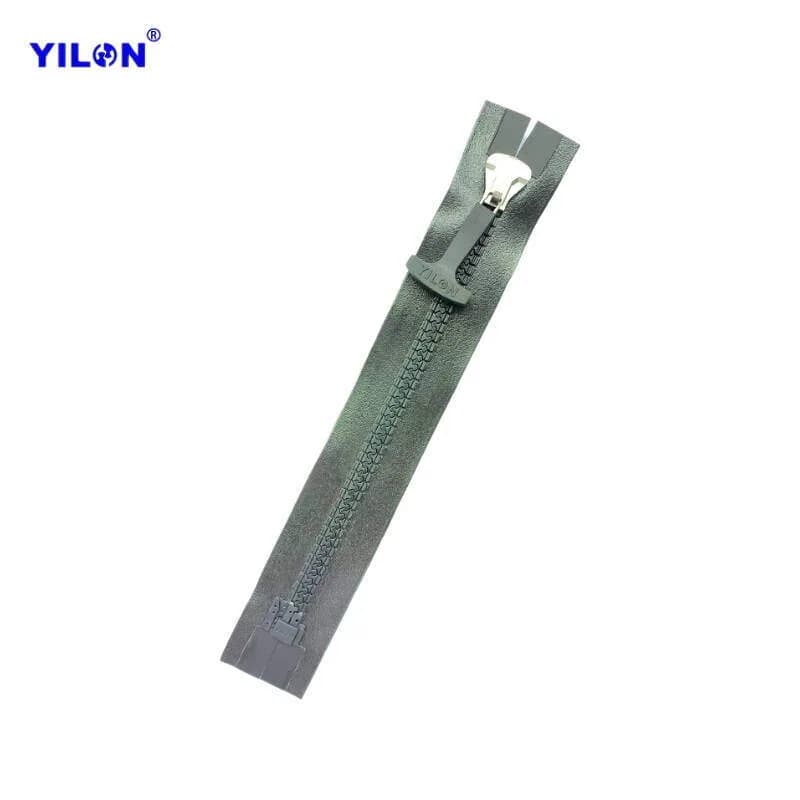

#10 Top Stop Open Bottom Stop Open
6 images published

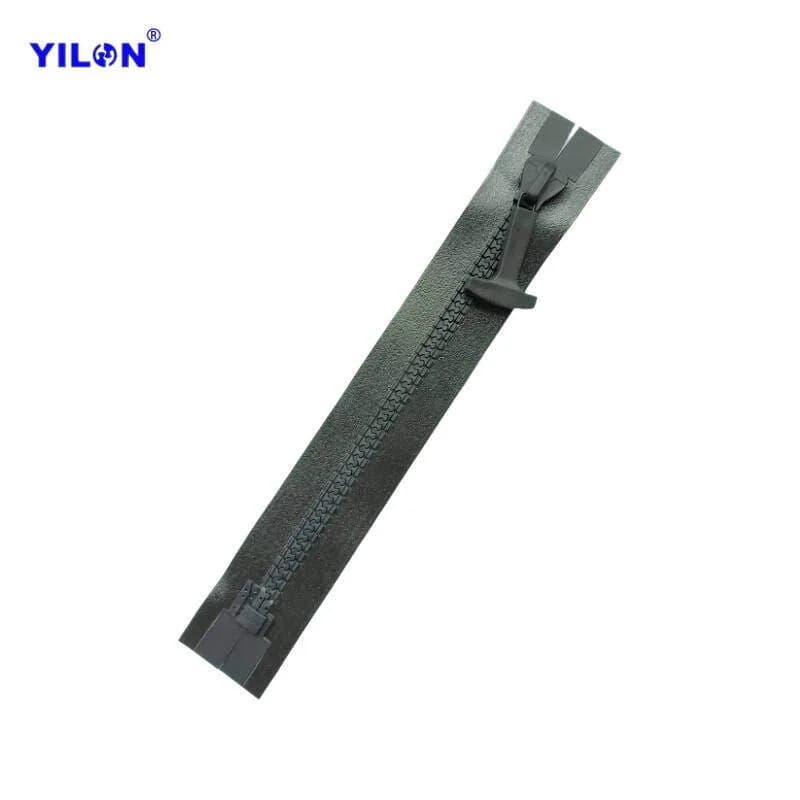

#10 Top Open Bottom Open Plastic Slider
6 images published

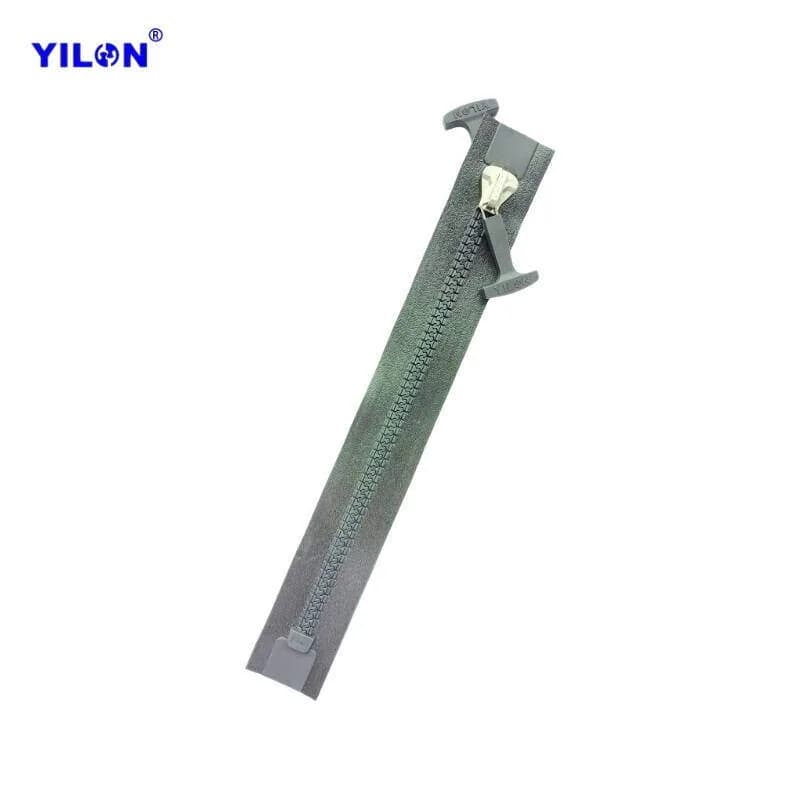

#10 Single Slider Double Puller
6 images published

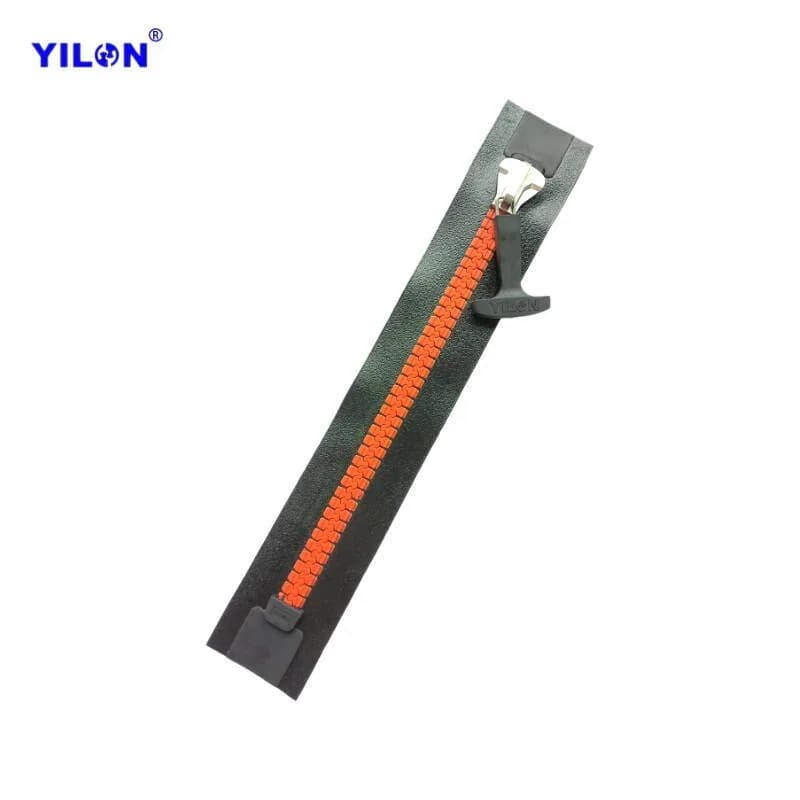

#10 Orange Double Closed
6 images published

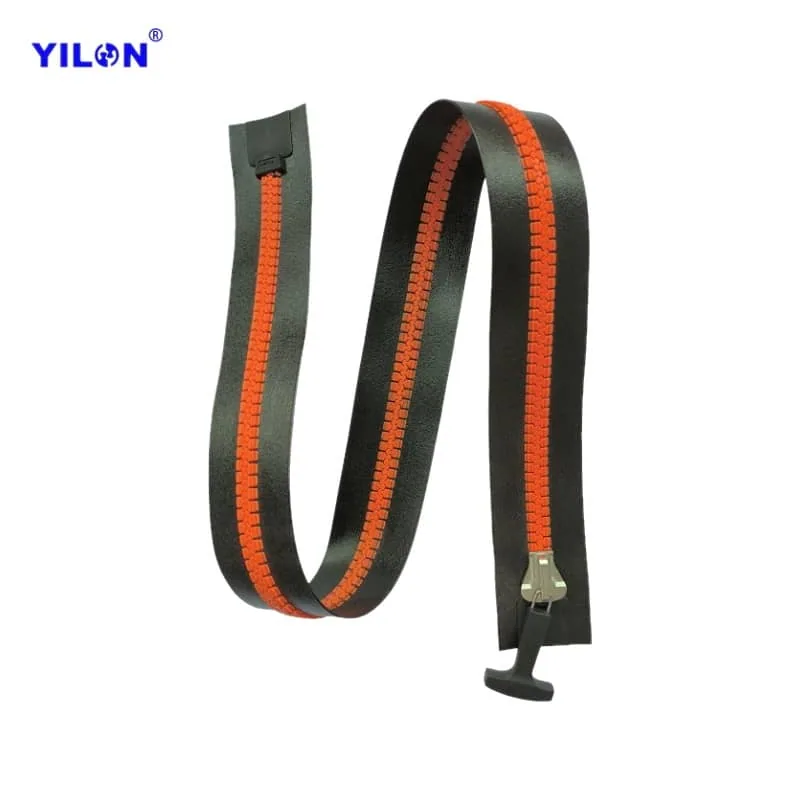

#10 Orange Double Closed 76CM
4 images published

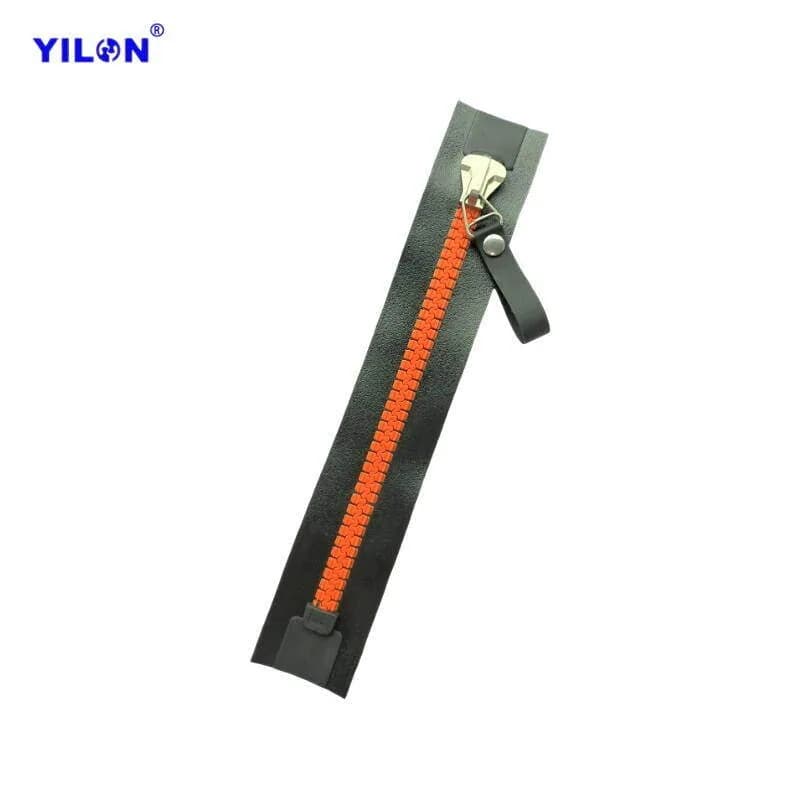

#10 Orange Fabric Pull Tab
6 images published

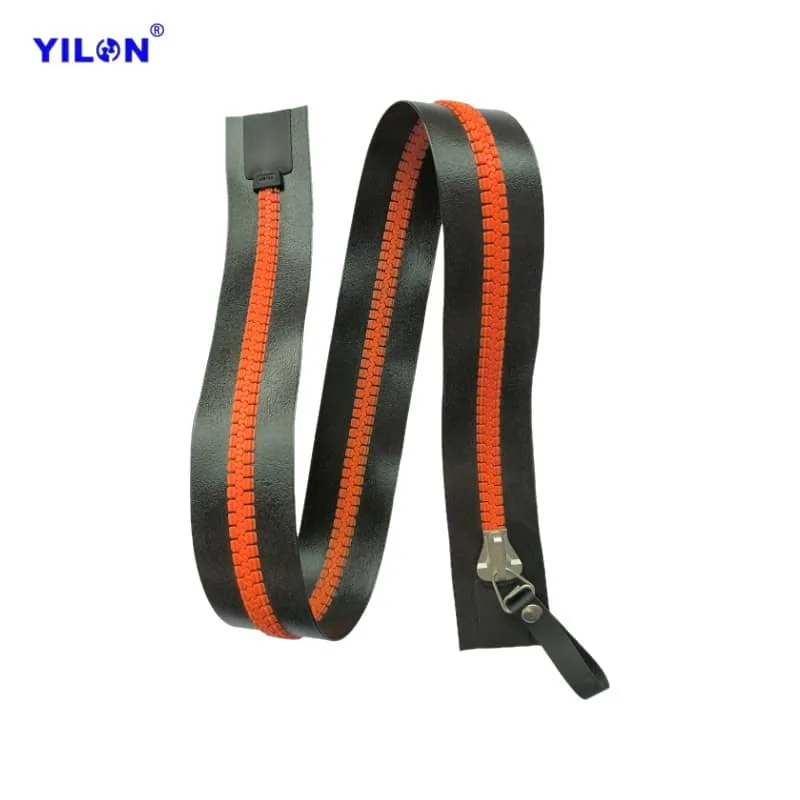

#10 Orange Fabric Pull Tab Long
5 images published

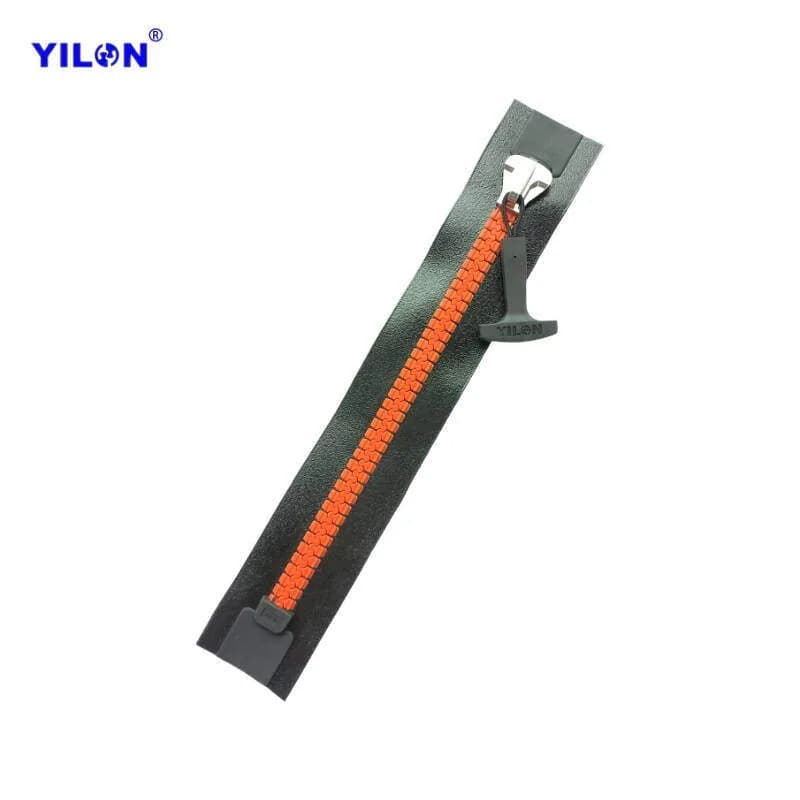

#10 Orange Cord T
6 images published

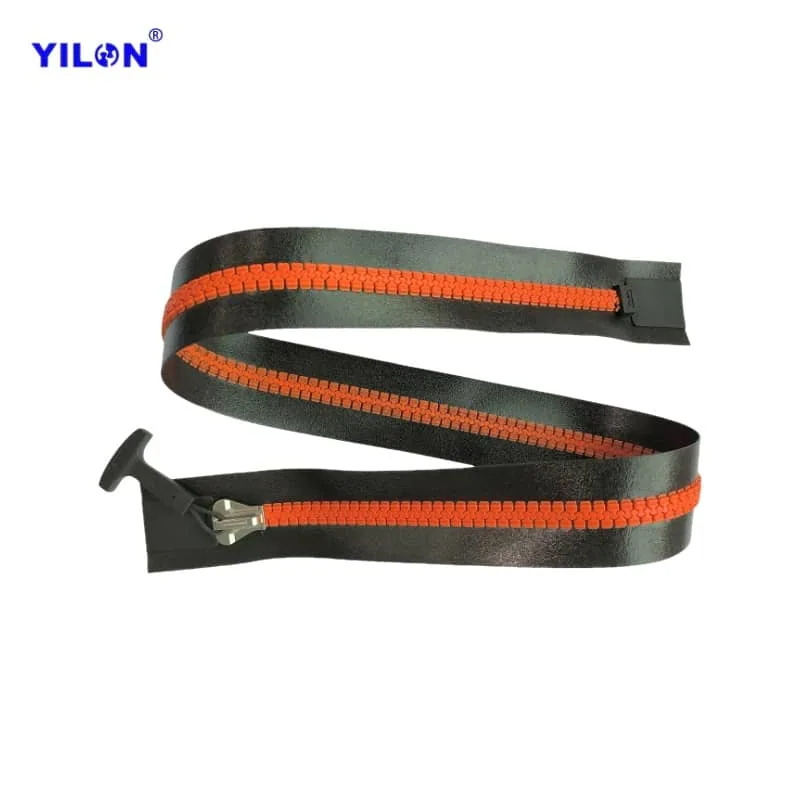

#10 Orange Cord T Long
5 images published

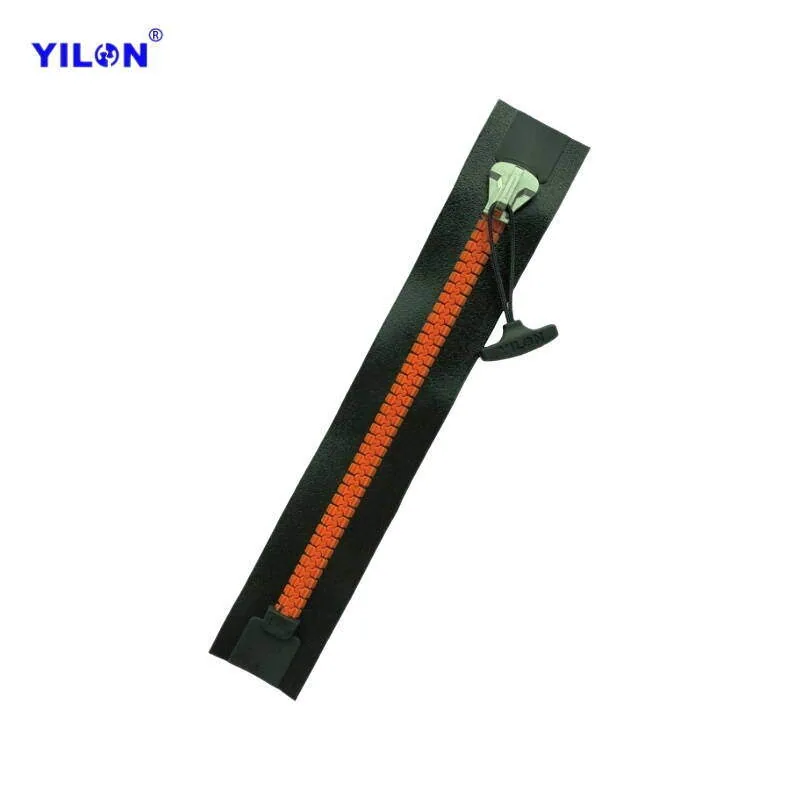

#10 Orange Cord End
6 images published

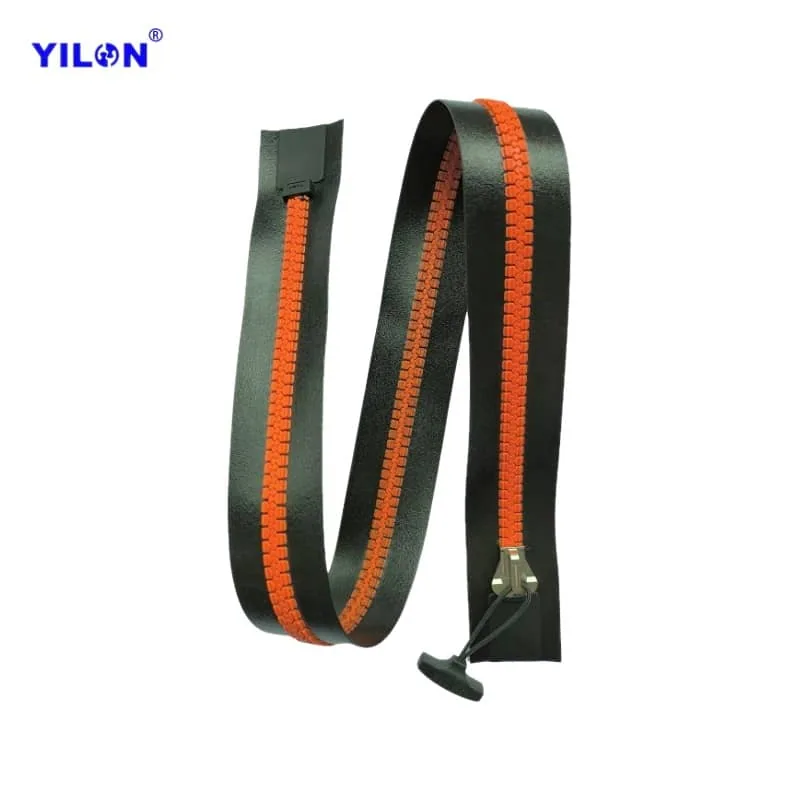

#10 Orange Cord End 76CM
5 images published

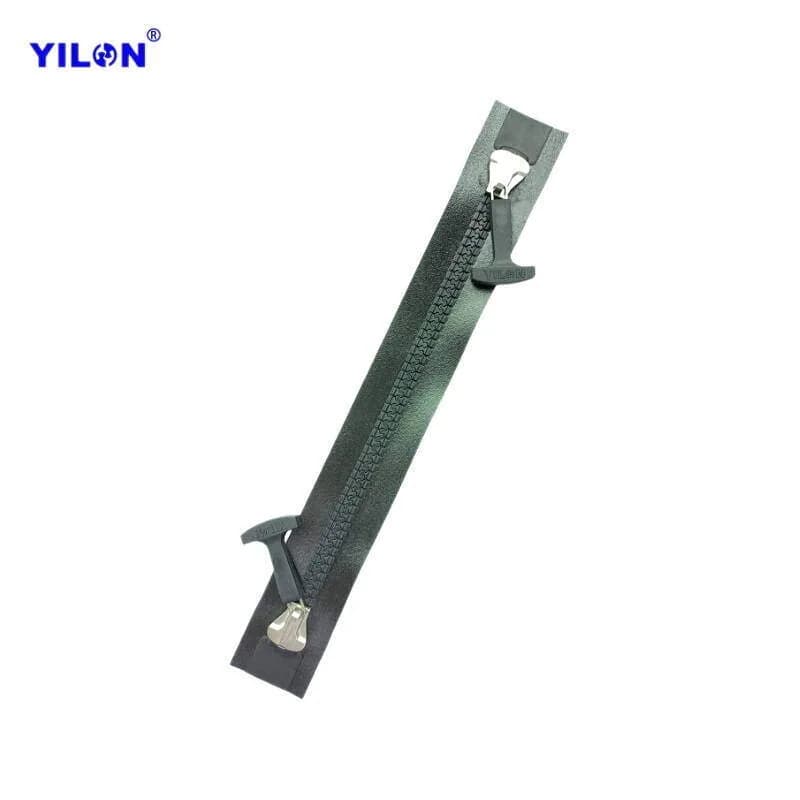

#10 Front Double Slider
6 images published

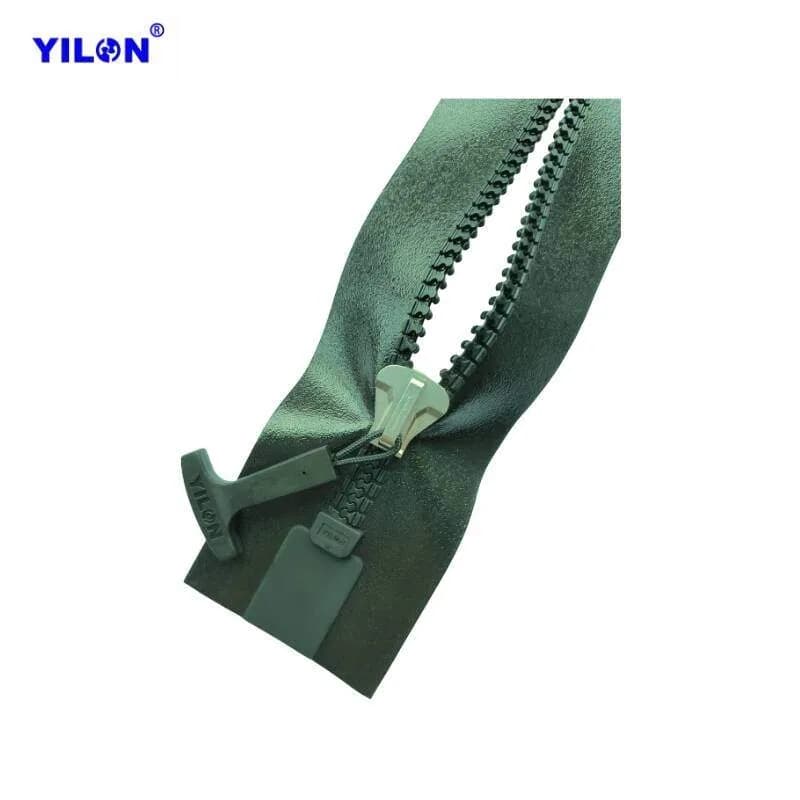

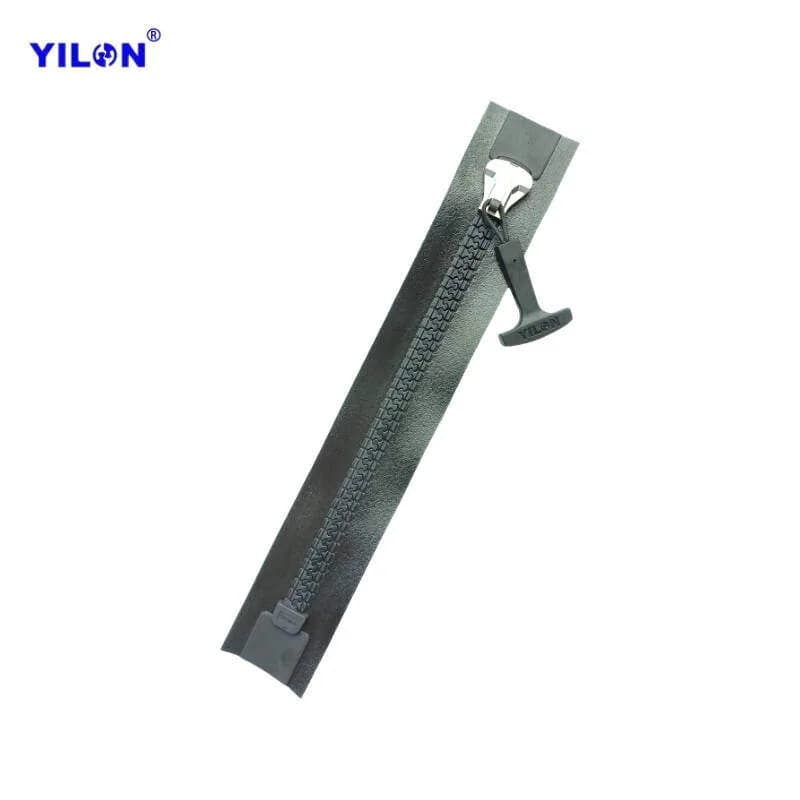

#10 Airtight Zipper Cord T
6 images published

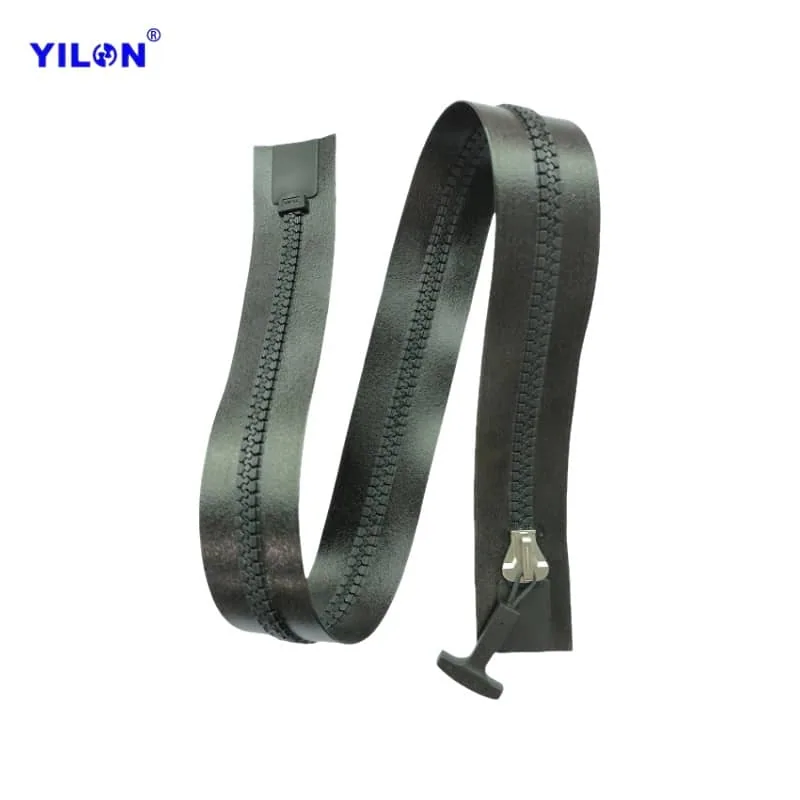

#10 Airtight Zipper Cord T Long
5 images published

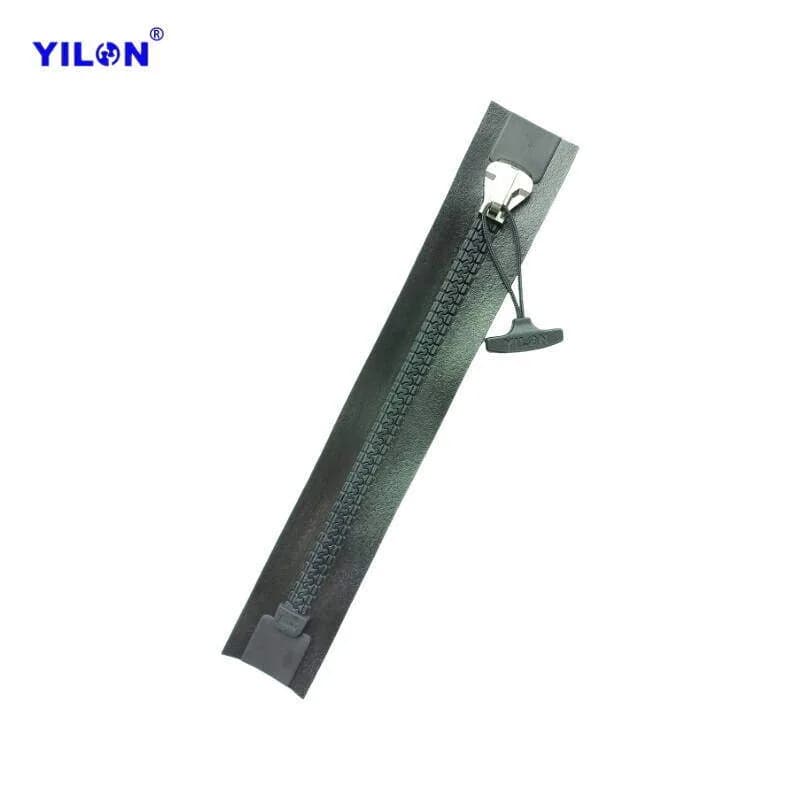

#10 Airtight Zipper Cord End
6 images published

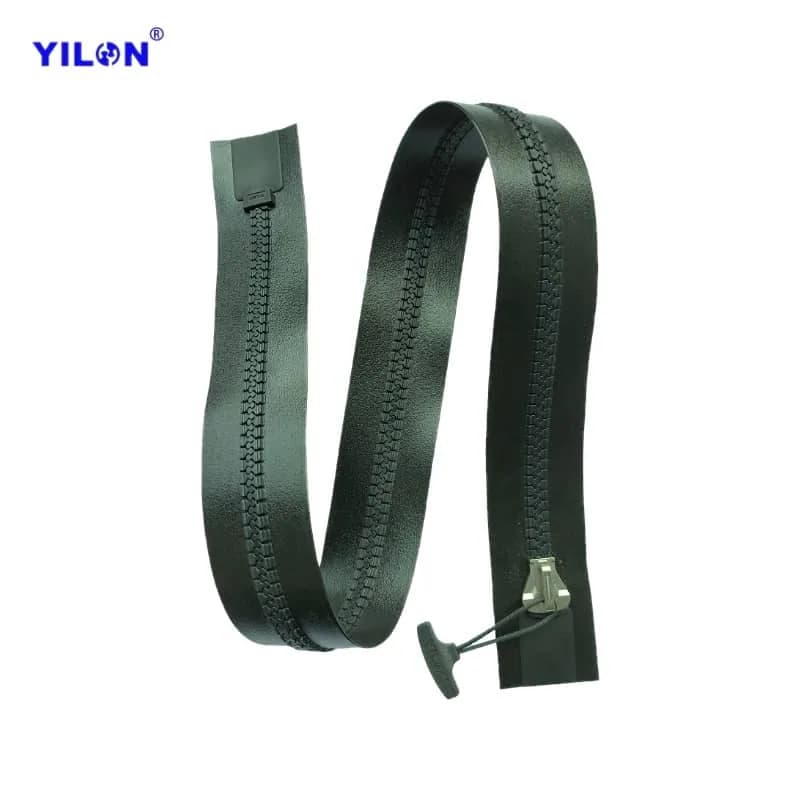

#10 Airtight Zipper Cord End 76CM
6 images published

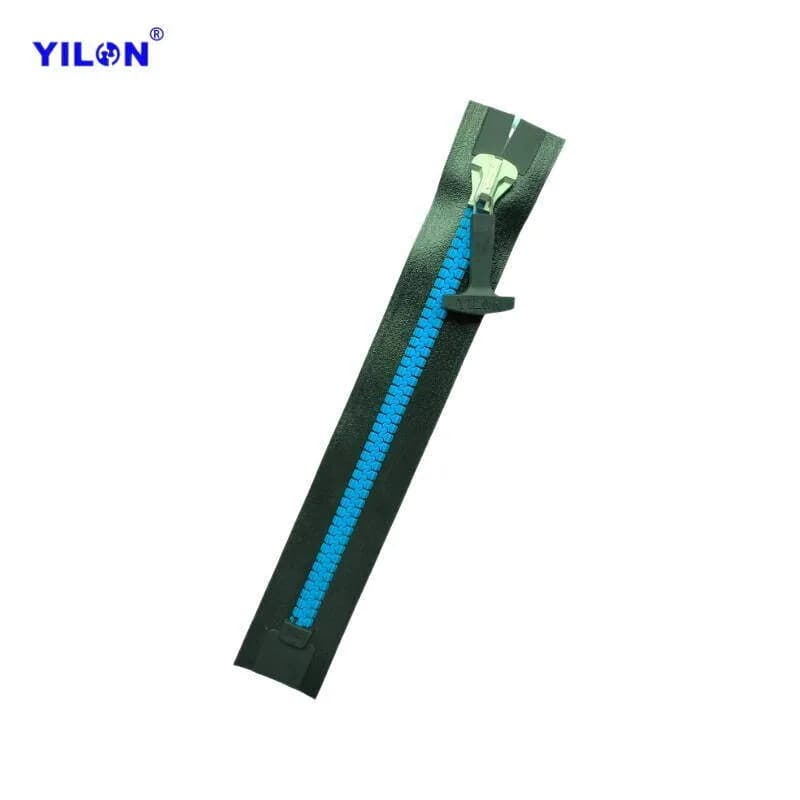

#10 Blue Top Open Bottom Closed
6 images published

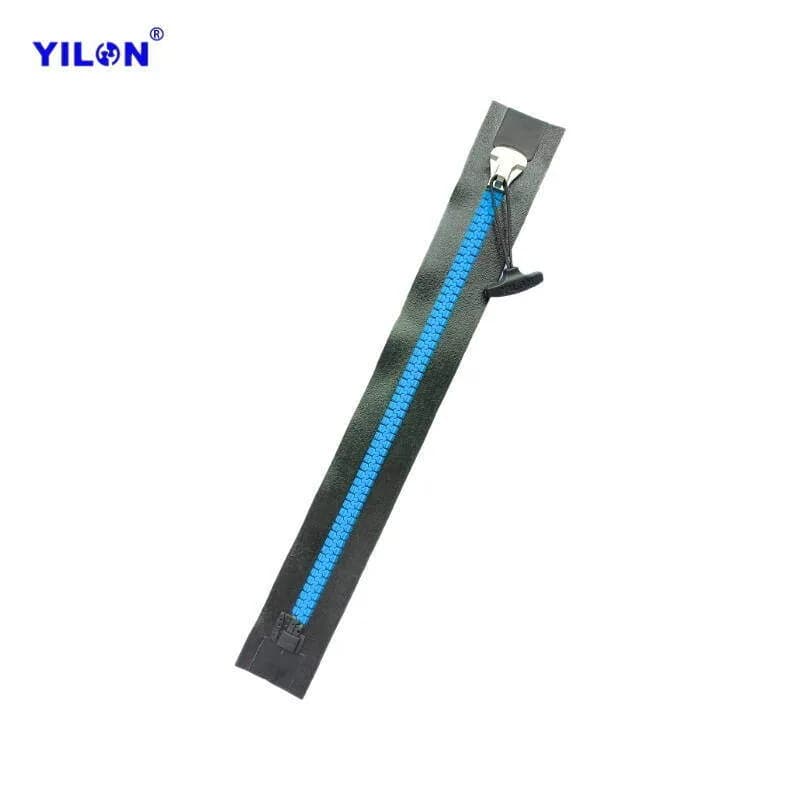

#10 Blue Top Closed Bottom Open
6 images published

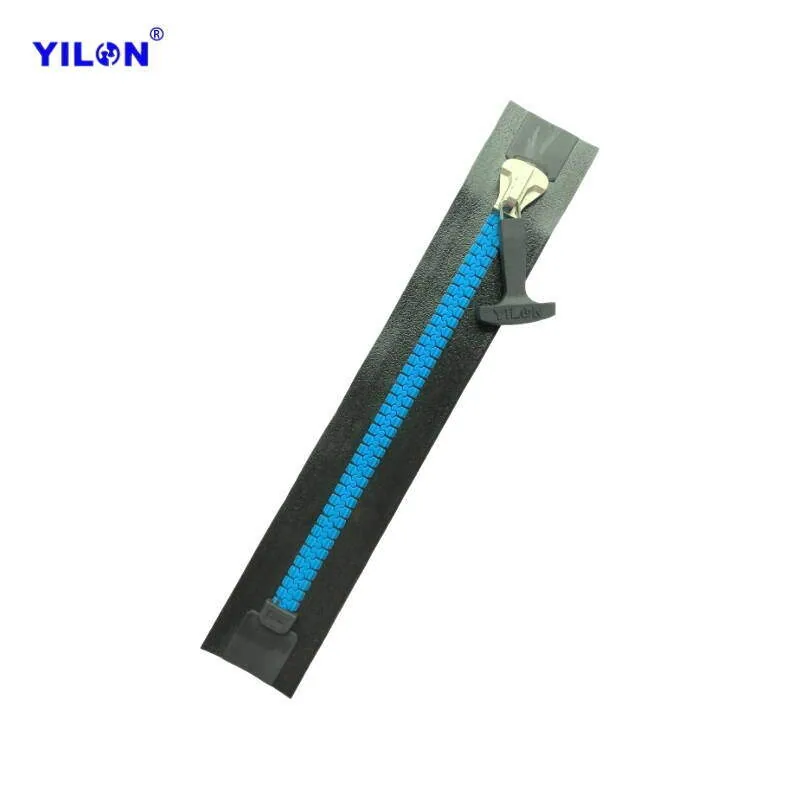

#10 Blue Double Closed
6 images published

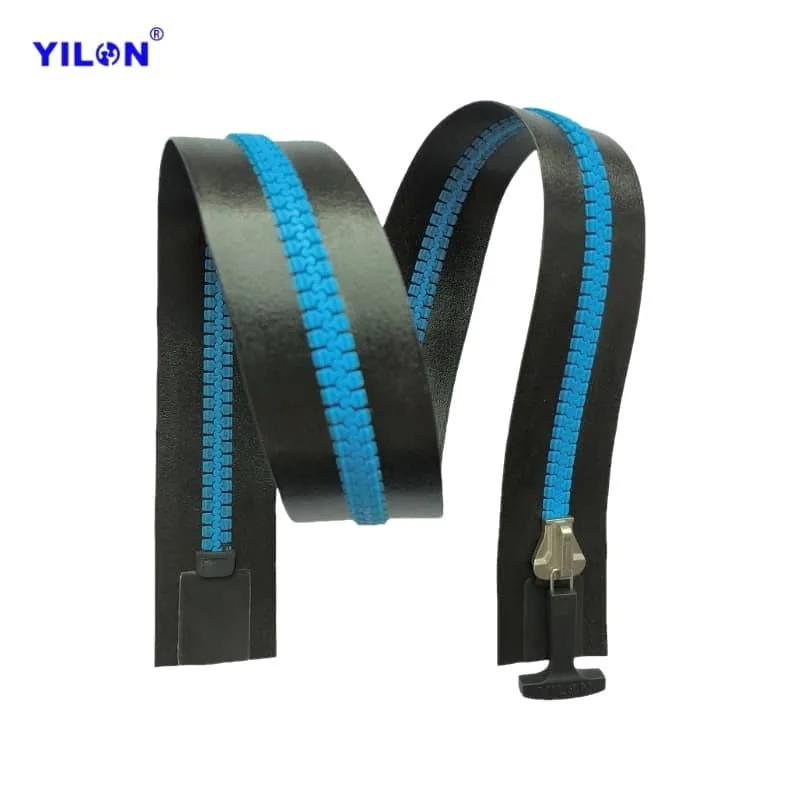

#10 Blue Double Closed 76CM
5 images published

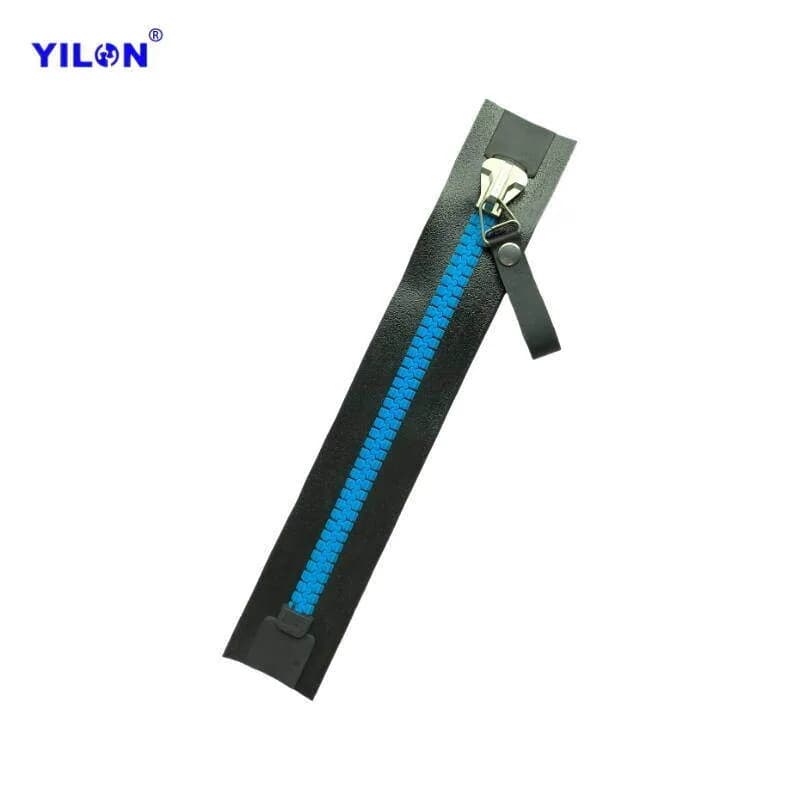

#10 Blue Fabric Pull Tab
6 images published

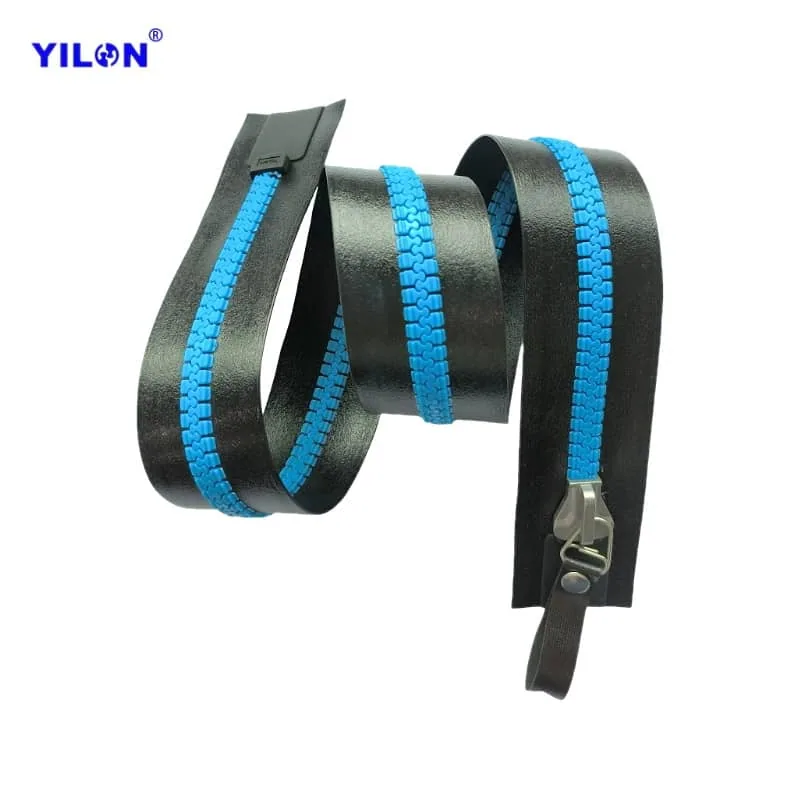

#10 Blue Fabric Pull Tab Long
5 images published

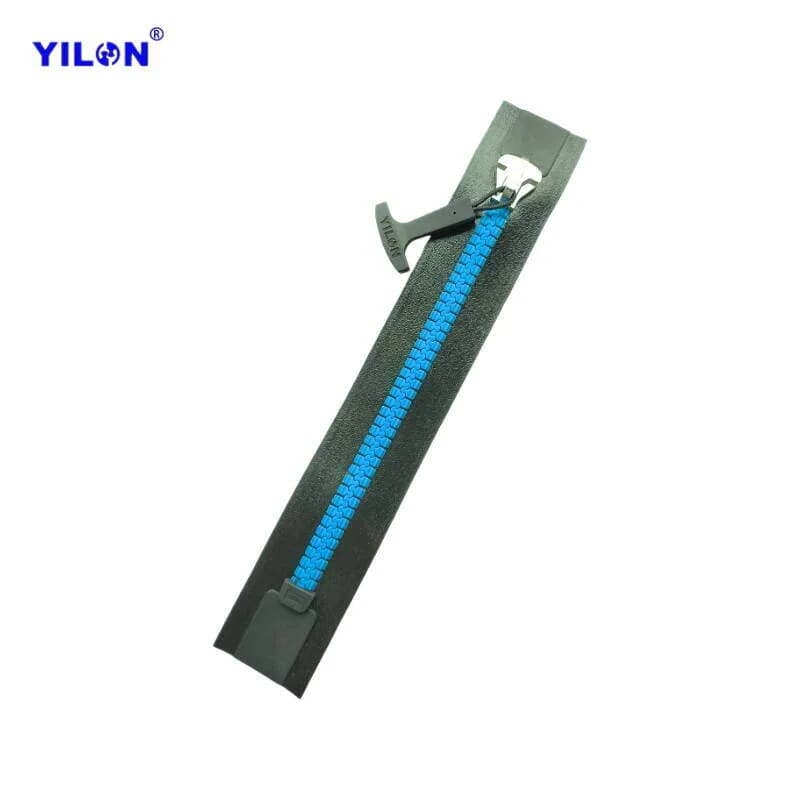

#10 Blue Cord T
6 images published

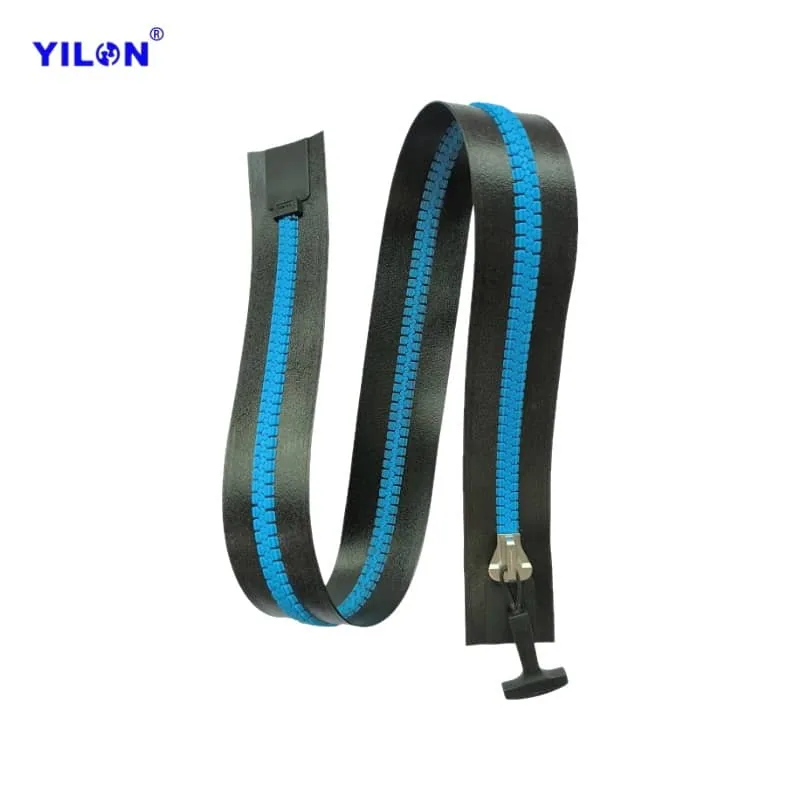

#10 Blue Cord T Long
5 images published

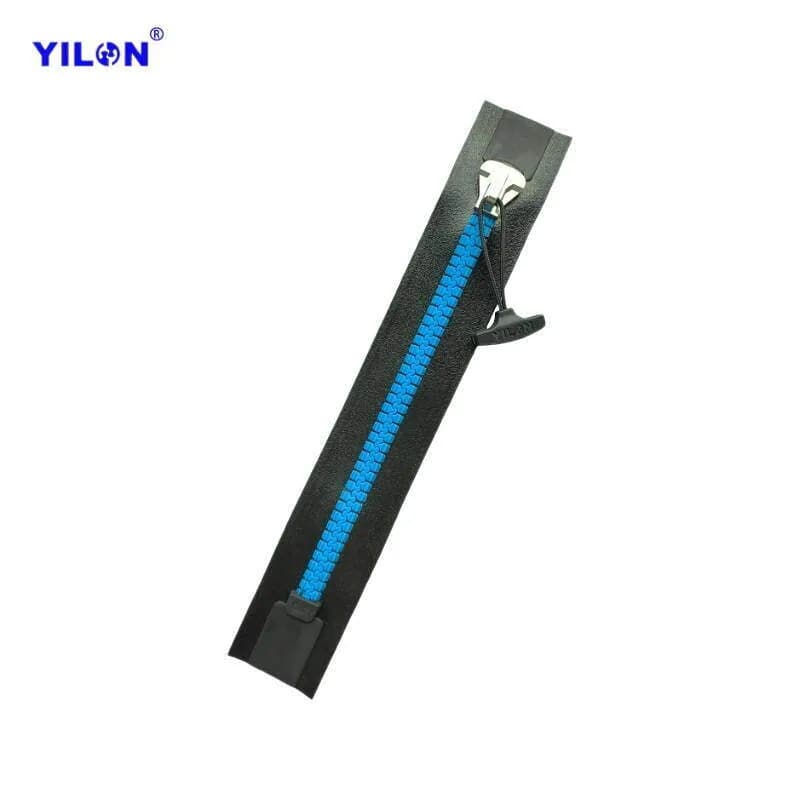

#10 Blue Cord End
6 images published

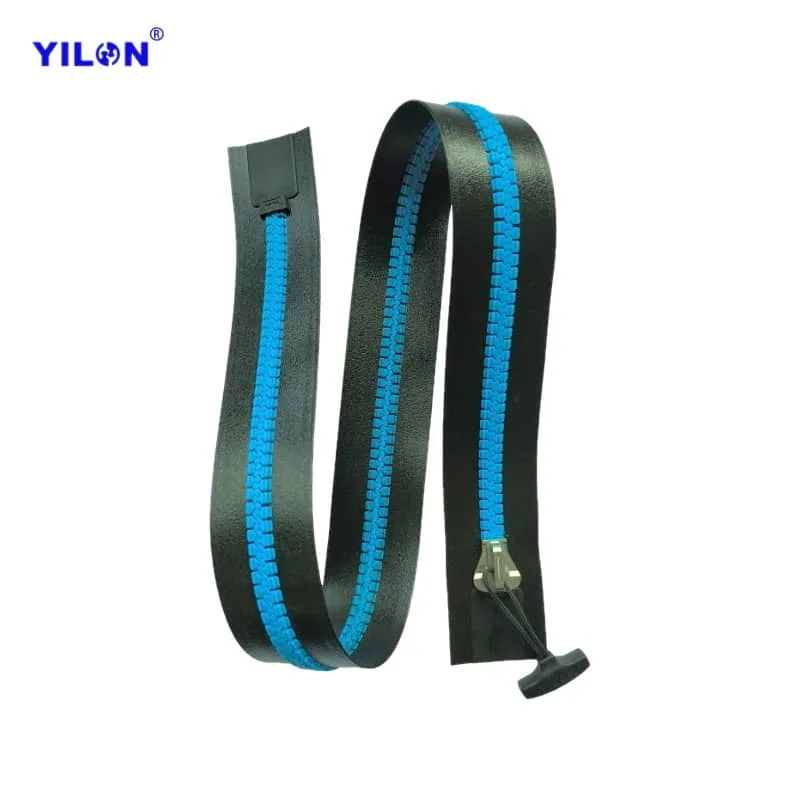

#10 Blue Cord End 76CM
5 images published

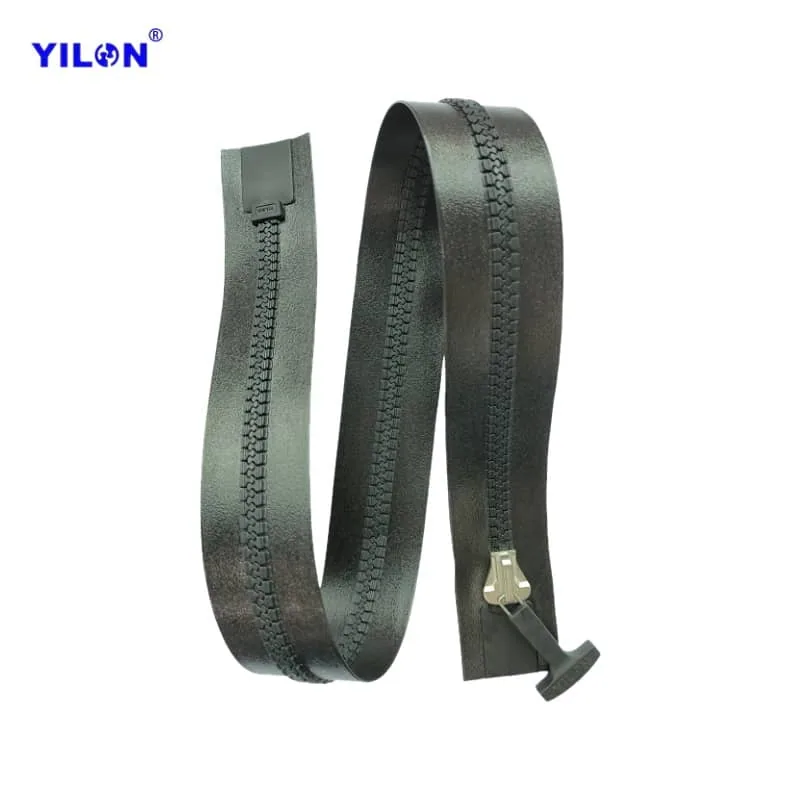

#10 Black Double Closed 76CM
5 images published

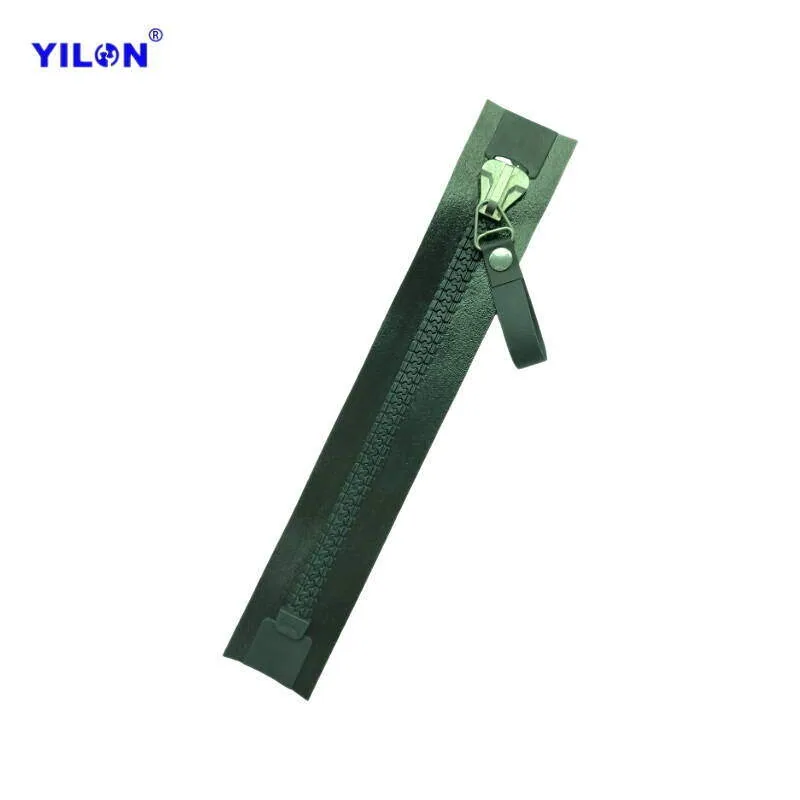

#10 Black Fabric Pull Tab
6 images published

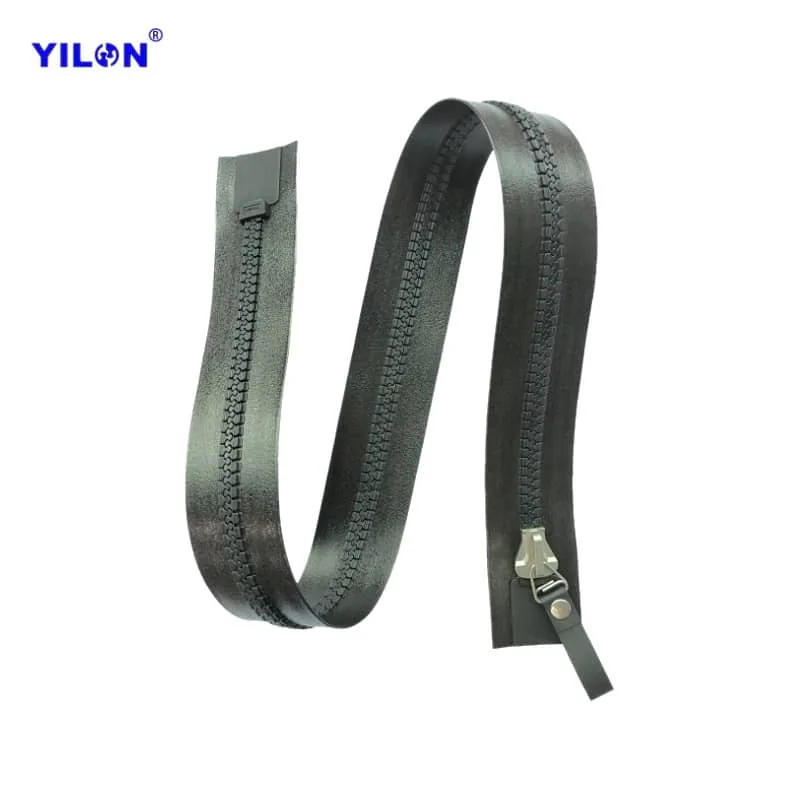

#10 Black Fabric Pull Tab Long
5 images published
Applications
Where this series is used
The manufacturer's published applications for this product. Each links to the sealing requirements that apply to that use.
Also consider
Related series
IPX8#5 Resin Airtight Zipper
Compact #5 resin airtight zipper — IPX8 sealed, 30 kPa tested, for lighter waterproof and airtight assemblies.
- Material
- TPU
- Seal strength
- 30 kPa
IPX8Self-Healing Airtight Zipper
Recovers automatically if the chain derails — built for inflatables, rescue gear and any application where a failed seal is not an option.
- Material
- TPU
- Seal strength
- 30 kPa
IPX7PEVA Airtight Zipper
Lightweight, eco-friendly PEVA airtight zipper for everyday waterproof products where cost matters as much as sealing.
- Material
- PEVA
- Seal strength
- —
Common questions
Questions buyers ask about this product
How do I choose between #5, #8 and #10 airtight waterproof zippers?
#5 suits lightweight and flexible products, #8 suits medium-to-high strength waterproof equipment, and #10 suits heavy-duty, pressure-resistant and industrial sealing projects. The resin, nylon woven, self-healing and circular ranges address military equipment, waterproof equipment, sealed bags and luggage, and protective suits. When selecting, supply the use case, opening length, tape width, host material, water or air pressure, opening frequency and target waterproof rating.
How do I choose between TPU, PEVA, silicone rubber and nylon woven materials?
TPU suits most airtight waterproof projects. PEVA suits lightweight and economy waterproof products. Silicone rubber suits wide temperature ranges and high-end sealing. Nylon woven with TPU suits garments and flexible fabrics. Resin teeth with a sealing layer suit openings that need higher strength.
What product ranges and sub-models does YILON currently offer?
YILON currently covers 9 main product ranges: #10 resin airtight zipper, #5 resin airtight zipper, self-healing airtight zipper, PEVA airtight zipper, #5 nylon woven waterproof zipper, #8 nylon woven waterproof zipper, high-speed roller door zipper, circular airtight zipper and drysuit envelope. The #10 resin, #5 resin, self-healing, high-speed roller door and circular ranges are published with 3,000+ cycle durability.
How much sealing pressure can an airtight zipper withstand?
YILON airtight zippers reference a 60 kPa sealing pressure test. The pressure actually withstood depends on the size (#5/#8/#10), material, installation method and end structure. The specific figure is subject to your project’s test conditions.
